Bluetooth Ebike Battery 52V 17.5Ah 48V 13Ah Hailong Battery 52V 48V Li-ion Ebike Shark Battery for 1000W 750W 500W Motor Kits
Brand Name: UNITPACKPOWER
Capacity: 10 - 20Ah
Voltage: 52V
Type: Lithium Battery
Rated Capacity: 48V 13Ah/ 52V 17.5Ah optional
Cells: Brand/Samsung/Sanyo optional 18650 3.7V Cells
Fit for motor: 48V 52V 1000W 800W 750W 500W 350W 250W Motor Kits
BMS: 30A
Battery Net Weight: 4.5kg
Battery Dimensions: 370*90*110mm
Charger: 2A
Lifecycle: 800-1000 Cycles with DOD80%
Certificate: CE,UL,RoHS,MSDS,UN38.3
Warranty: 12 months
Model: R049-2
Unique feature: With Bluetooth function
Bluetooth Ebike Battery 52V 17.5Ah 48V 13Ah Hailong Battery 52V 48V Li-ion Ebike Shark Battery for 1000W 750W 500W Motor Kits
Key Features and Upgrade:
1. Newest Hailong case battery, the case is stronger a lot than market normal hailong battery
2. Battery mount base upgrade: Added one more mounting hole for easier installation and for more ebike models, reduce the controller space to increase battery cell space to get more capacity. (detail as below picture shows)
3. Transmission current upgrade: 5 needles dischage port to instead of 4 needles for better connect. (detail as below picture shows)

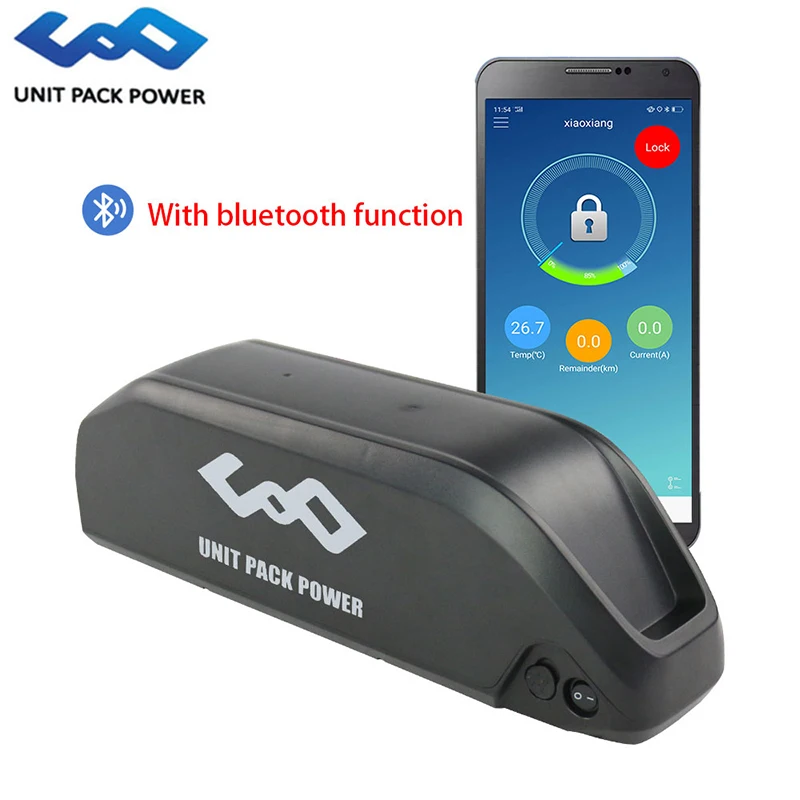

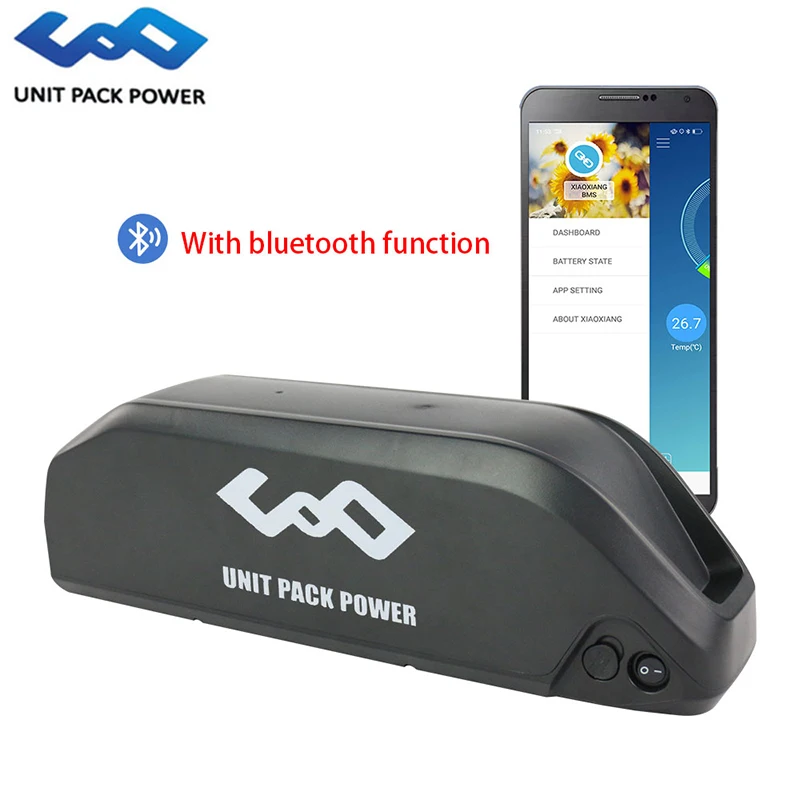

Most important: this battery with Bluetooth BMS, support view all the battery's specs and it's condition at cellphone APP.
Specification
Nominal Voltage: 48V/52V optional
Rated Capacity: 13Ah/17.5Ah optional
Watt Hours:624Wh/910Wh
Cell inside: 48V 13Ah with Brand cells; 52V 17.5Ah with Samsung or Sanyo cells optional.
Configuration: 13S5P/ 14S5P
Standard Charge Current: 2A
Max charge voltage: 54.6V for 48V battery/ 58.8V for 52V battery
AC input: 110-240v,50/60HZ
BMS Continue Discharge Current: 30A
Peak Discharge Current: 100A
Fit for Motor: 48V 52V 250W 350W 500W 750W 1000W
Charged Cut-off Voltage: 54.6V/58.8V
Discharge Cut-off Voltage: 39V/42V
Battery Net Weight: 4.5Kg
Battery Dimensions: 370*90*110mm
Charger Connector: US/EU/UK/AU AC plug and DC Connector
Operating Temperature: Charging 0℃-45℃, Discharge -20℃~65℃
Lifecycle: 800-1000 Cycles with DOD80%
Charger plugs and Discharge connectors optional:
1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without requested.
2. Discharge Connector: There are 8 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.
But If send from USA or Germany, the discharge cable is soldered with number 7 Anderson connector already, can't be changed.
About Shipping:
Battery is a special product, all batteries need several cycle test before delivery, so production and
test time need about 3-7 days after confirm order;
For EU Countries customer: (Tax free)
Air to Europe firstly, then dispatch by Europe UPS/DPD, tracking number can be trackable online after UPS/DPD transfered the parcel.
Shipping time is usually 7-12 working days( not including Sat Sun) after delivery.
For USA Customers: (Tax free)
Shipping by Fedex/UPS, Shipping time is usually 6-12 working days after delivery.
Special Line:
1)Shipping by Special Line to Australia, Malaysia, Thailand, Taiwan, Shpping time is usually 4-12 working days.
2)Shipping by Specail Line to Russia(Tax free), tracking online update after arriving Moscow. Shipping time is usually 18-28 working days.
Please note: battery can't be sent to any island address, if you're from a Island address, please check with us before order.
UnitPackPower also have warehouse and maintenance center at USA and Germany
Any store without our brand" UNITPACKPOWER" in the ID or name all are fake stores.
Their batteries not from us, with different quality.
Guarantee
We provide 1 year warranty for all electric bike batteries.
Any battery with quality problem in o n e month we can return the money after you provide the proof.
After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.
All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.
Top brand lithium battery manufacturer in China, rest assured to buy.
We don't supply warranty service for the following situation :
The battery goes over water
The battery is broken man-made
The cells are burnt out after using .
Return the battery without reason
Open a case without contacting us
Feedback
Our battery can fit all motor kit, but exclude these four : Bosch, SHIMANO, Yamaha, Panasonic .
Please contact us, If you can't conifrm your motor.
If you have any problems please feel free to contact us BEFORE you leave negative feedback or file a case.
Any problem is not a problem, as long as you contact us.
Your satisfaction and positive feedback is very important to us.
Please kindly leave positive feedback and 5 Stars for us if you are satisfied with our items and services.
Company Information:
FAQ
Q: What type of this electric bike battery?
A: It is li ion battery,Chemical is Li(NiCoMn)O2.
Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?
A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.
Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.
Q: Do your e-bike battery come with charger?
A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.
Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
Lithium battery features
Longer battery life, the life expectancy is two times that of lead-acid batteries.
Rechargeable and no memory effect.
The weight is more lighter.
Smaller dimensions and can be customized.
Safer and more environmentally friendly, No heavy metals and hazardous substances.
BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .
Warnings
Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
The Bluetooth Ebike Battery 52V 17.5Ah 48V 13Ah Hailong Battery 52V 48V Li-ion Ebike Shark Battery for 1000W 750W 500W Motor Kits is far and away, one of our most popular items. People can't seem to get enough of it.
