2019 48v500w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel EBike system

2019 48v500w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel EBike system

Brand Name: OUMIAO
Voltage: 48V
Design: Brushless
Wattage: > 400w
Motor Type: Brushless Gear Hub Motor
Controller: 48V22A
Display: K-LCD3/880LED
PAS: V8
Throttle: Thumb throttle
Brake sensor: Cut off power Brake Level
Rated power: 500W

2019 48v500w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel EBike system

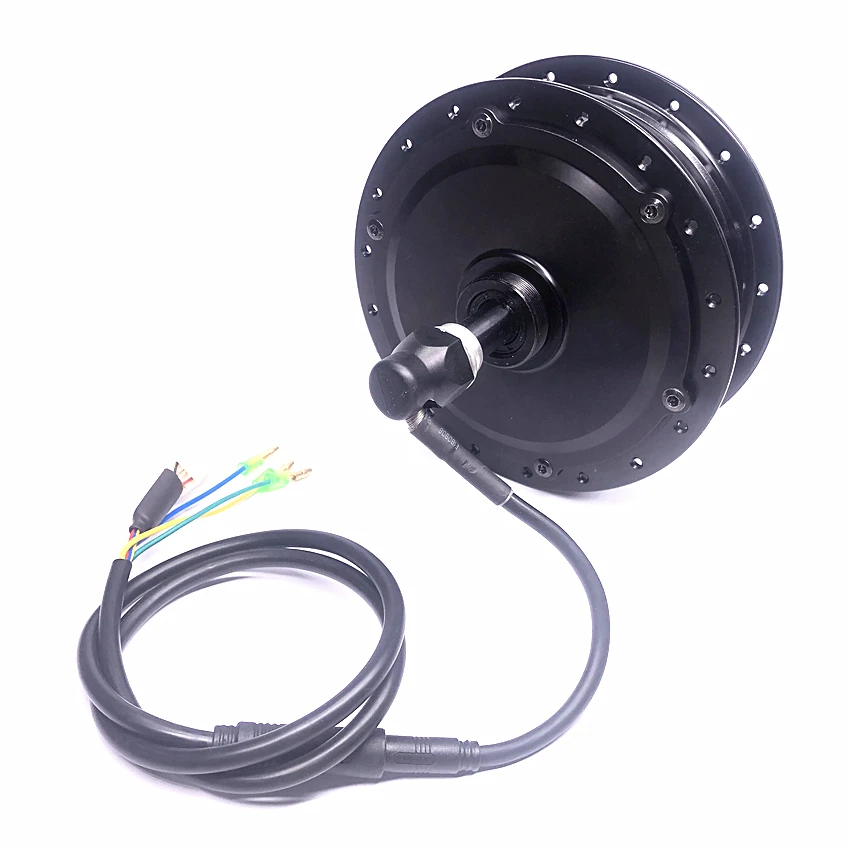

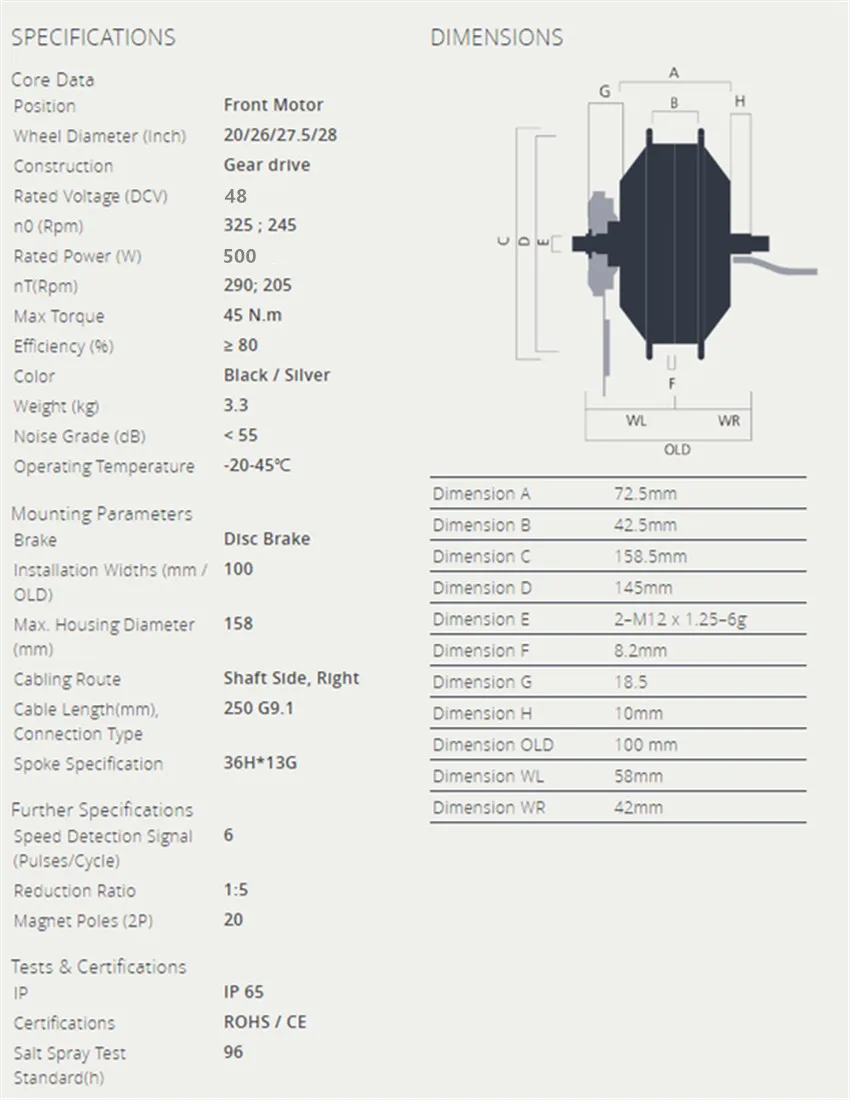

Front motor:

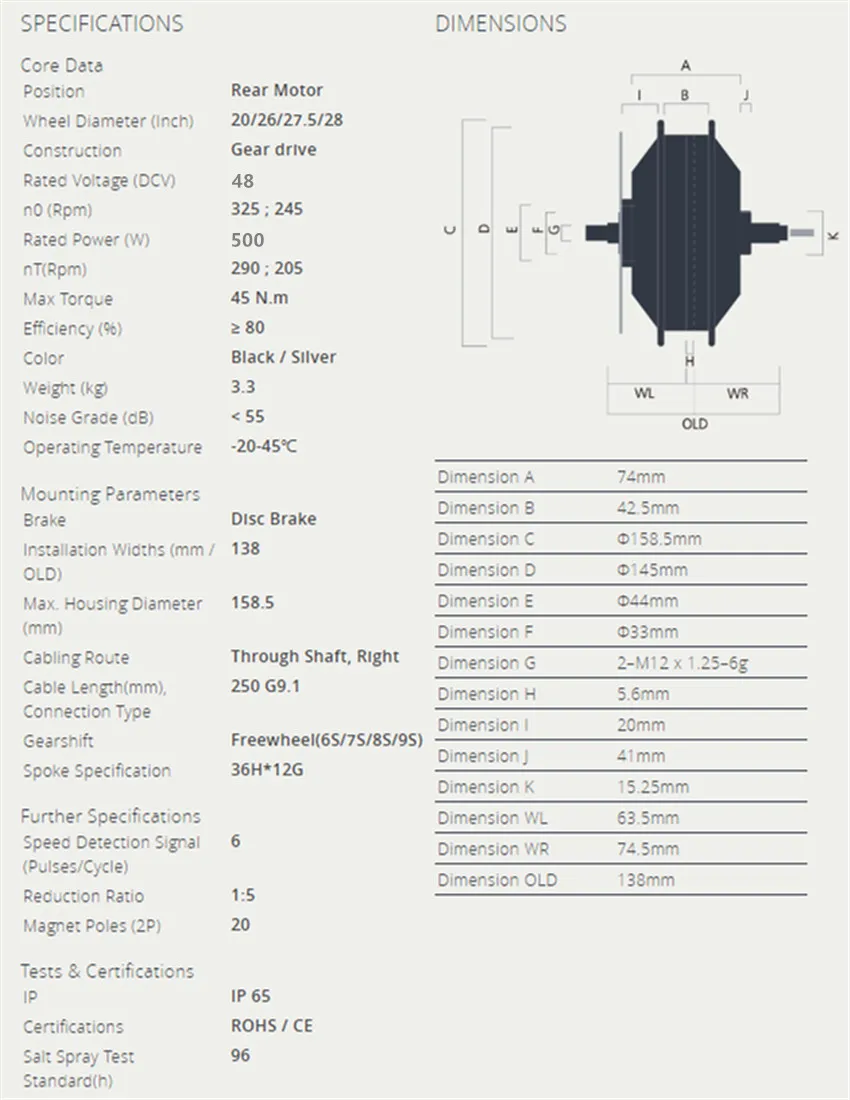

Rear motor:

If you need spoked rim,please leave us a message.

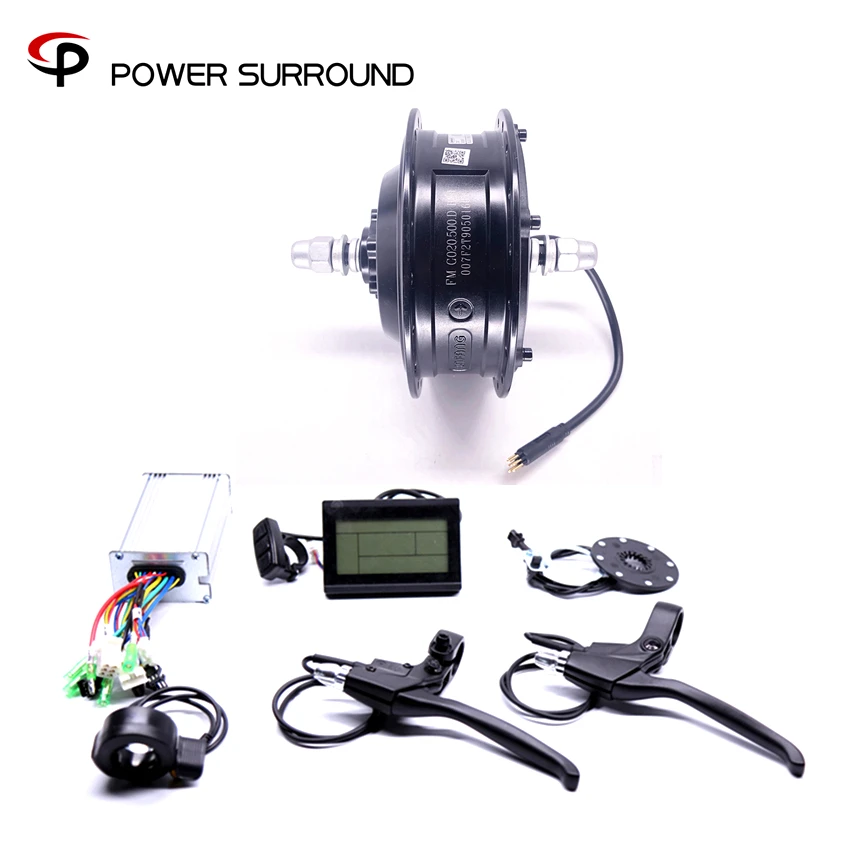

Packing List:



1.48V500W BAFANG  hub motor

(You can choose front or rear hub motor)

2.48V22A block-wave controller

3.Display

(You can choose 880LED or K-LCD3)

4.Thumb throttle

5.V8 PAS

6.Cut off power Brakelever

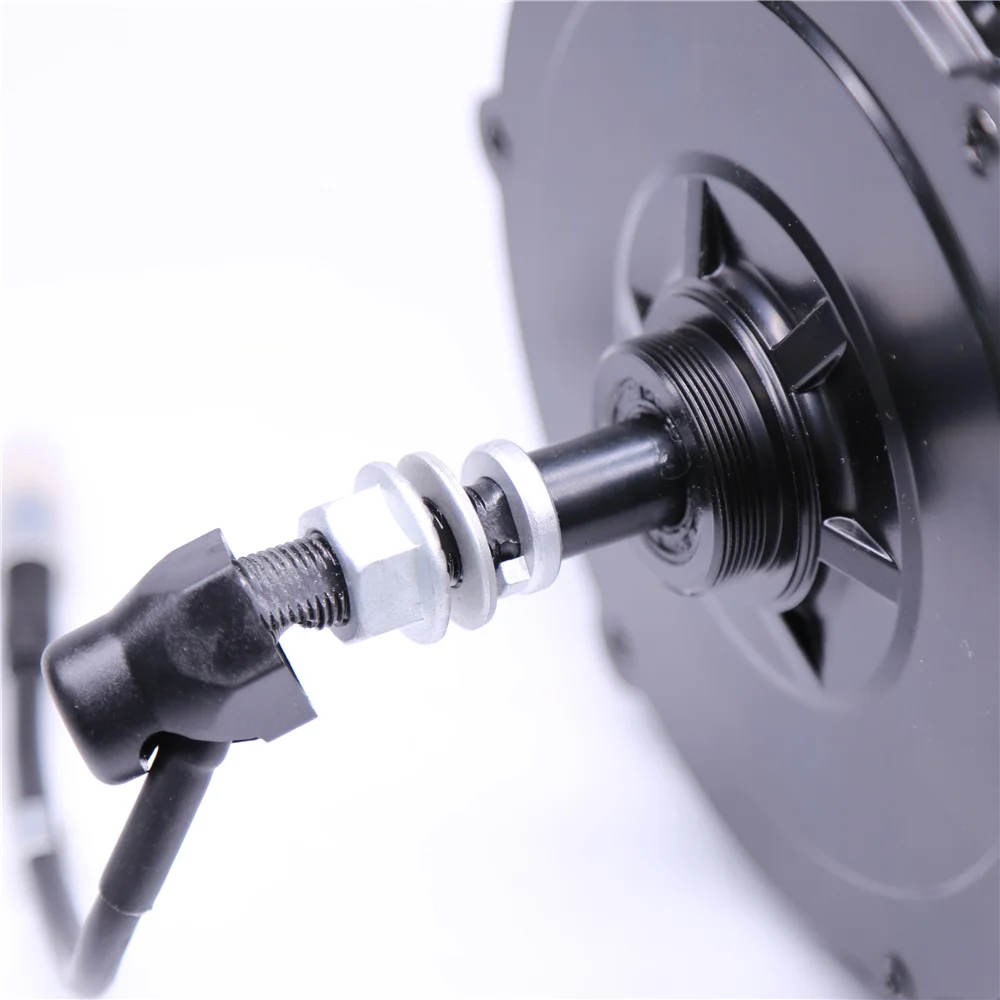

If you choose the rear wheel motor kit,there is a thread for the freewheel:

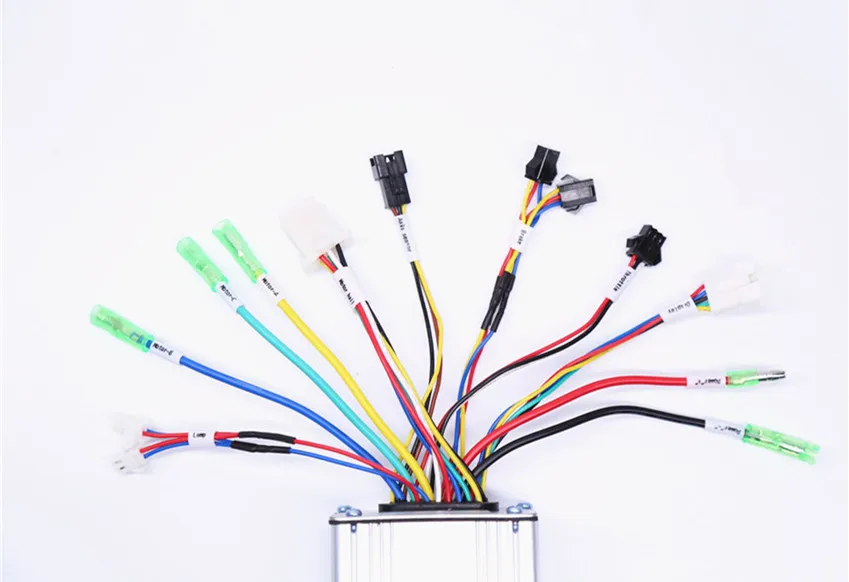

Tags on the wires,easy to install:

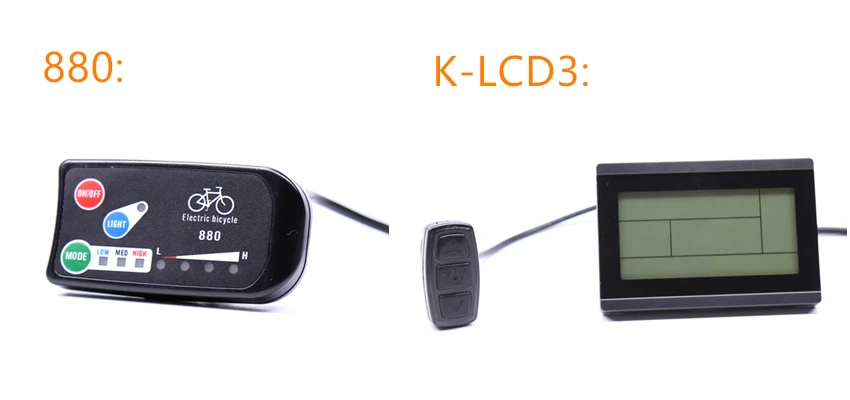

LED and LCD display for choice:

​

About Us:

We believe that cycling is for everyone, not just the fit and the young. Whether riding a mountain bike through a forest track,climbing the hills on a cross bike, screaming down the hills on a road bike or pulling the kids around on a tag along, few things beat the fun and exhilaration of cycling. It's worth mentioning that with the contribution of electricity,now there is no reason for you to miss out.



That's what we dedicated and why we started our online shop which focus on electric bicycle series ,such as electric bike conversion kits, mountain and city electric bikes, fat tyre electric bikes and relative parts for electric bicycles.



All products we are producing reflect our interests and professionalism.No matter whether you are looking for e-cycles for communiting,touring or random,we can help you with the best choice!



Useful Tips:





• Warranty

One year guarantee.

Within 15 days(base on the delivery data):We will cover the round trip shipping postage.

15  days to one year:We will cover the return postage.



• Packing&Shipping

5 Layer Double Wall Carton,and DHL,FEDEX,TNT,EMS for shipping choise.



• Return Policy

we will refund you if you return the items within 15 days of your receipt of the items and it is only the reason of product itself like defect,damage,anything that is seller's fault,not the buyer's personal preference or failure to use.



The 2019 48v500w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel EBike system is the yin, to your yang. You've found what you're looking for.

Click Here to Buy Now

Color display Waterproof 36v250w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel Ebike System

Color display Waterproof 36v250w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel Ebike System

Brand Name: OLOEY
Voltage: 36V
Design: Brushless
Wattage: 201 - 300w
Motor Type: Brushless Gear Hub Motor
Bafang motor Model: FRM G01.250.D
Controller: Sin-wave 36V15A 6 mosfets
Display: 500C/850C
PAS: DH12 PAS (12 magnets)
Throttle: Thumb throttle
Brake sensor: Optional
Rated Power: 250W
Controller Size: 83mm*54mm*30mm
Connector type: Higo Waterproof

Color display Waterproof 36v250w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel Ebike System

	SPECIFICATIONS of the motor in this kit
	Core Data
	Position	Front Motor	Mounting Parameters
	Wheel Diameter (Inch)	20/26/27.5/28	Brake	Disc Brake
	Construction	Gear drive	Installation Widths	100/135
	Rated Voltage (DCV)	36	(mm / OLD)
	n0 (Rpm)	290 ; 250	Max. Housing Diameter	135
	Rated Power (W)	250	(mm)
	nT(Rpm)	255 ; 220	Cabling Route	Shaft Side, Right
	Max Torque	32 N.m	Cable Length(mm),	250 G9.1
	Efficiency (%)	≥ 80	Connection Type
	Color	Black / Silver	Spoke Specification	36H*13G
	Weight (kg)	3
	Noise Grade (dB)	< 55	Further Specifications
	Operating Temperature	-20-45℃	Speed Detection Signal	6
	Tests & Certifications		(Pulses/Cycle)
	IP	IP 65	Reduction Ratio	1:4.42
	Certifications	ROHS/CE	Magnet Poles (2P)	20
	Salt Spary Test Standard(h)	96

If you need spoked rim,please leave us a message.

Packing List:



1) 36V250W BAFANG  hub motor

(You can choose front or rear hub motor)

2) 36V15A 6 mosfets Sin-wave controller

3) EB-BUS 1T4 waterproof cable (80cm)

4) Motor cable (180cm for front motor, 100cm for rear)

5) Color display

(You can choose 500C or 850C, see photos below)

6) Left&right Thumb throttle

7) DH12 PAS (12 magnets)

8) EB-BUS and PAS extension cable

(Suitable for the battery installed at any position)

9) Cut off power Brakelevers

(If you prefer the cable brake or hydraulic brake sensor, please leave us a message)





500C and 850C color display for choices:



If you choose the rear wheel motor kit,there is a thread for the freewheel:



About Us:

We believe that cycling is for everyone, not just the fit and the young. Whether riding a mountain bike through a forest track,climbing the hills on a cross bike, screaming down the hills on a road bike or pulling the kids around on a tag along, few things beat the fun and exhilaration of cycling. It's worth mentioning that with the contribution of electricity,now there is no reason for you to miss out.



That's what we dedicated and why we started our online shop which focus on electric bicycle series ,such as electric bike conversion kits, mountain and city electric bikes, fat tyre electric bikes and relative parts for electric bicycles.



All products we are producing reflect our interests and professionalism.No matter whether you are looking for e-cycles for communiting,touring or random,we can help you with the best choice!



Useful Tips:



• Warranty

One year guarantee.

Within 15 days(base on the delivery data):We will cover the round trip shipping postage.

15  days to one year:We will cover the return postage.



• Packing&Shipping

5 Layer Double Wall Carton,and DHL,FEDEX,TNT,EMS for shipping choise.



• Return Policy

we will refund you if you return the items within 15 days of your receipt of the items and it is only the reason of product itself like defect,damage,anything that is seller's fault,not the buyer's personal preference or failure to use.

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Color display Waterproof 36v250w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel Ebike System is for you.

Click Here to Buy Now

Bafang 36V 350W BBS01B Mid Motor Lithium Battery Electric Bicycle DIY Conversion Kit

Bafang 36V 350W BBS01B Mid Motor Lithium Battery Electric Bicycle DIY Conversion Kit

Brand Name: okfeet
Voltage: 36V
Design: Brushless
Wattage: 301 - 400w
Motor Type: Side Hung Motor
Net Motor Weight: 3.8kg
Bracket bottom length: 68mm
Display Working Temperature: -20-80C
Waterproof Grade: IP65
Efficiency: 80
Certifications: CE / EN 14764 / ROHS
Nominal Voltage: 36V
Nominal Capacity: 16Ah
Cell Type: 50 LG3200 Cells

Bafang 36V 350W BBS01B Mid Motor Lithium Battery Electric Bicycle DIY Conversion Kit

Service
1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.
2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5.This is for 68mm bottom branket.(JIS)If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
7.We provide a front light OR a installation tool as a gift.Please leave me a message which one do you need.The default gift is tool.
8.In the following countries, your tax will be paied by us if you buy DDP shipping service together with motor kit.

the United Kingdom Germany Belgium Luxembourg Netherlands Slovenia France Poland Austria Czech Republic Denmark Hungary Slovakia Lithuania Spain Sweden Latvia Italy Portugal Estonia Croatia Finland.

Main parameter
Motor
Power:36V 350W
Max Torque: 80 N.m
Construction: Gear drive
Display: C961 C965 SW102 / 850C 750C DPC18 KD718 500C (colorful display)  Optional
Integrated Controller Current :18A
New Controller Code : 219
Stator Widing : 13T
Teeth Number:44T 46T 48T 52T (Optional)

Net Motor Weight: 3.8kg

Bracket bottom length:68mm

Display Working Temperature:-20-80C

Waterproof Grade:IP65

Efficiency ≥80
Pedal sensor: speed sensor
Noise Grade: ＜55dB
Shaft Standard: JIS
Certifications: CE / EN 14764 / ROHS
Salt Spray Test Standard(h):96

Battery

36V 16Ah Specification:
Nominal Voltage: 36V
Nominal Capacity: 16Ah
Cell Type: 50 LG3200 Cells
Cell Model: 18650 Cells
Operating Charge Temperature:0～45℃
Operating Discharge Temperature:-20～60℃
StorageTemperature:-20～60℃

​Battery features:
*Maximum 52pcs 18650cells

*4 lever LED capacity indicator

* W/power switch

* Waterproof grade IPX4

* Standard DC 2.1 charging port

* with controller space.

* with spanninga rear light.

Packaging included:

1 * 36V 350W Mid Drive Motor

1 Pair * Brake Levers (can be changed to brake sensor for free, please kindly leave us message if you need)

1 Pair * Crank

1 Pair * Chainwheel (44T/46T/48T/52T opition, please kindly leave us message if you want change the chain wheel)

1 Set * Thumb Throttle

1 Set * Speed Sensor

1 * Display ( Optional)

1 * 4 in 1 Cable

1 * Accessories
1 * 36V 16Ah Li-ion Battery
1 * 36V 3A changer
2 * 36V 250W label

Gifts: 1 pcs 6V Front Light OR a installation tool
           If you need different power connector.Please leave a message.
           Thanks!

WARRANTY

Battery:1 year  Parts:6 months  motor:2 years

Based on the purchase data:free repair.Buyer pay for return postage and resend postage.

EXPRESS

Usually we send the goods as the shipping method you choose.But some times we may change the shipping method,also as fast as you choose.Please understand.

SYSTEM MATCH

Before you place the order about controller or display.Please contact us without hesitation and send me some your old conversion system pictures .Because some are same appearance but has different comunication protocol.They may not match your old conversion system.

CUSTOMS TAX

Usually we declare the minimum value to save your customs tax.But due to different policies in different countries,there might be some customs tax should be paid by buyer.So you could leave a message when placing the order about how much value you would like to declare.

FEEDBACK

Your satisfaction will be our best return for serving you. Please give us a five-star rating if you are satisfied with our products.If you are not satisfied,please contact us.We will serve you until you satisfied.

..........................................................................................................................................................................................................................................



The Bafang 36V 350W BBS01B Mid Motor Lithium Battery Electric Bicycle DIY Conversion Kit is the product you didn't think you need, but once you have it, something you won't want to live without.

Click Here to Buy Now

48V 750W Bafang BBS02 Mid Drive Motor Central Engine LG Cell Electric Bike Ebike Conversion Kit With 16Ah Battery

48V 750W Bafang BBS02 Mid Drive Motor Central Engine LG Cell Electric Bike Ebike Conversion Kit With 16Ah Battery

Brand Name: okfeet
Voltage: 48V
Design: Brushless
Wattage: > 400w
Motor Type: Side Hung Motor

48V 750W Bafang BBS02 Mid Drive Motor Central Engine LG Cell Electric Bike Ebike Conversion Kit With 16Ah Battery

Service
1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.
2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5.This is for 68mm bottom branket.(JIS)If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
7.We provide a front light OR a installation tool as a gift.Please leave me a message which one do you need.The default gift is tool.
8.In the following countries, your tax will be paied by us if you buy DDP shipping service together with motor kit.

the United Kingdom Germany Belgium Luxembourg Netherlands Slovenia France Poland Austria Czech Republic Denmark Hungary Slovakia Lithuania Spain Sweden Latvia Italy Portugal Estonia Croatia Finland.

Main parameter

Motor

Power:750W
Max Torque: 160 N.m
Display: C961 C965 SW102 / 850C 750C DPC18 KD718 500C (colorful display)  Optional
Integrated Controller Current :25A
New Controller Code : 214
Stator Widing : 9T
Teeth Number:44T 46T 48T 52T (Optional)

Net Motor Weight: 5.6kg

Bracket bottom length:68mm

Display Working Temperature:-20-80C

Waterproof Grade:IP65

Efficiency ≥80
Pedal sensor: speed sensor
Noise Grade: ＜55dB

​Shaft Standard: JIS
Certifications: CE / EN 14764 / ROHS
Salt Spray Test Standard(h):96

Battery

48V 12.8Ah Specification:
Nominal Voltage: 48V
Nominal Capacity: 12.8Ah
Cell Type: 50 LG3200 Cells
Cell Model: 18650 Cells
Operating Charge Temperature:0～45℃
Operating Discharge Temperature:-20～60℃
StorageTemperature:-20～60℃

​Battery features:
*Maximum 52pcs 18650cells

*4 lever LED capacity indicator

* W/power switch

* Waterproof grade IPX4

* Standard DC 2.1 charging port

* with controller space.

* with spanninga rear light.

Packaging included:

1 * 48V 750W Mid Drive Motor

1 Pair * Brake Levers (can be changed to brake sensor for free, please kindly leave us message if you need)

1 Pair * Crank

1 Pair * Chainwheel (44T/46T/48T/52T opition, please kindly leave us message if you want change the chain wheel)

1 Set * Thumb Throttle

1 Set * Speed Sensor

1 * Display ( Optional)

1 * 4 in 1 Cable

1 * Accessories
1 * 48V 12.8Ah Li-ion Battery
1 * 48V 2A changer
2 * 36V 250W label

Gifts: 1 pcs 6V Front Light OR a installation tool
           If you need different power connector.Please leave a message.
           Thanks!

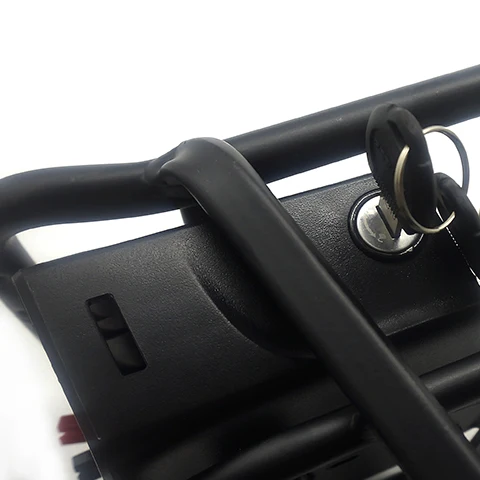

	Safe Lock Lock,use to lock the battery on the frame.

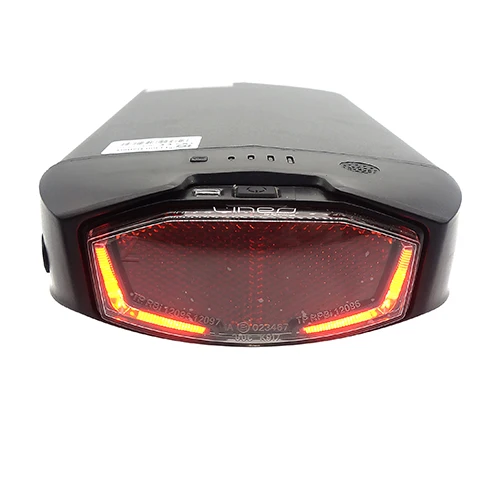

	Battery tail light Press the   button the taillight will turn on,press again taillight will turn off.The taillight will not turn off automatically,so when you do not use the battery please turn off the taillight avoid to run out of the battery power.

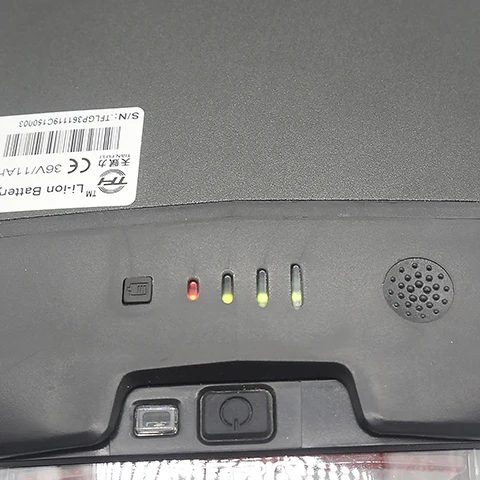

	Battery level light Press the     button the light will turn on. 1 Red 3 Green---100%    1 Red 2 Green---75% 1 Red 1 Green---50%      1 Red 0 Green---Less than 25%
	Low power warning  If the tail light is low, the low battery warning light will flash.
	Power switch Turn on and off the battery power.''O'' is power off,''-''power on.
	Charge socket The charge current for this socket can not be more than 3 amps.

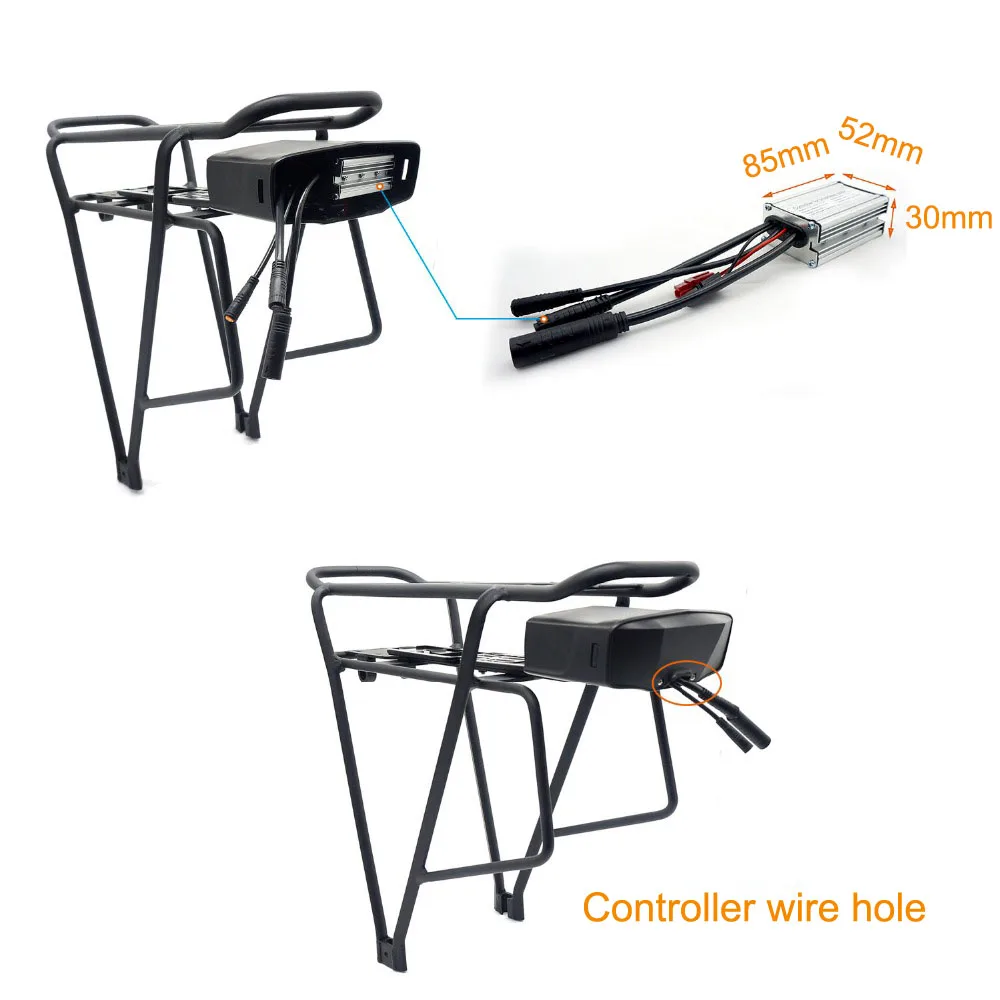

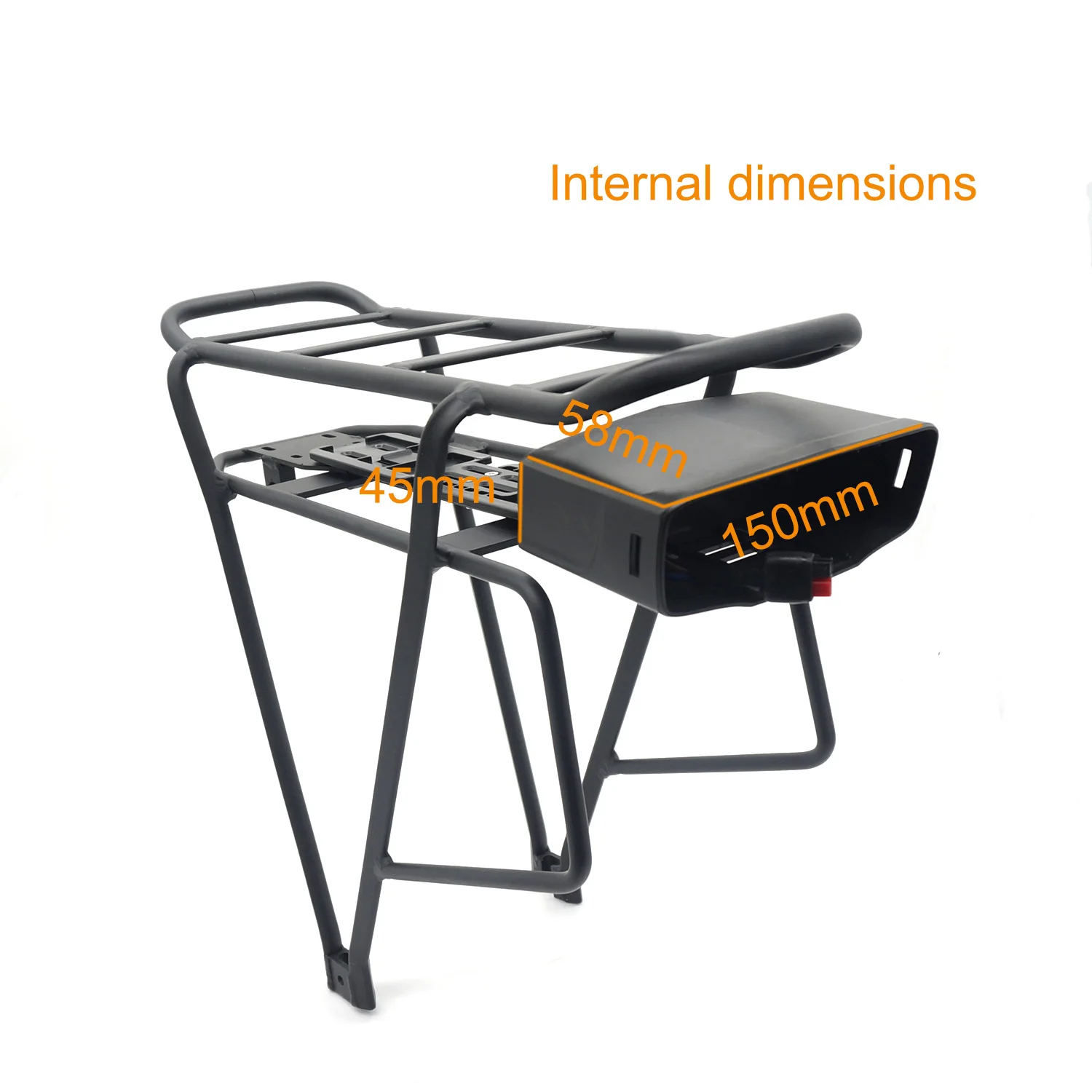

	Controller Box This battery have space to put the controller.But you need confirm your controller small enough to put in.Normally the controller need to customize.We do not provide the controller.
	Battery install plate Battery install plate.This plate will be installed on the battery when we ship.You can take it off by the key and install it on the bike frame by screw.Then put the battery on it



WARRANTY

Battery:1 year  Parts:3 months  motor:1 years

Based on the purchase data:free repair.Buyer pay for return postage and resend postage.

EXPRESS

Usually we send the goods as the shipping method you choose.But some times we may change the shipping method,also as fast as you choose.Please understand.

SYSTEM MATCH

Before you place the order about controller or display.Please contact us without hesitation and send me some your old conversion system pictures .Because some are same appearance but has different comunication protocol.They may not match your old conversion system.

CUSTOMS TAX

Usually we declare the minimum value to save your customs tax.But due to different policies in different countries,there might be some customs tax should be paid by buyer.So you could leave a message when placing the order about how much value you would like to declare.

FEEDBACK

Your satisfaction will be our best return for serving you. Please give us a five-star rating if you are satisfied with our products.If you are not satisfied,please contact us.We will serve you until you satisfied.

The 48V 750W Bafang BBS02 Mid Drive Motor Central Engine LG Cell Electric Bike Ebike Conversion Kit With 16Ah Battery is far and away, one of our most popular items. People can't seem to get enough of it.
