48V 750W Bafang BBS02 Mid Drive Motor Central Engine LG Cell Electric Bike Ebike Conversion Kit With 16Ah Battery

48V 750W Bafang BBS02 Mid Drive Motor Central Engine LG Cell Electric Bike Ebike Conversion Kit With 16Ah Battery

Brand Name: okfeet
Voltage: 48V
Design: Brushless
Wattage: > 400w
Motor Type: Side Hung Motor

48V 750W Bafang BBS02 Mid Drive Motor Central Engine LG Cell Electric Bike Ebike Conversion Kit With 16Ah Battery

Service
1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.
2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5.This is for 68mm bottom branket.(JIS)If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
7.We provide a front light OR a installation tool as a gift.Please leave me a message which one do you need.The default gift is tool.
8.In the following countries, your tax will be paied by us if you buy DDP shipping service together with motor kit.

the United Kingdom Germany Belgium Luxembourg Netherlands Slovenia France Poland Austria Czech Republic Denmark Hungary Slovakia Lithuania Spain Sweden Latvia Italy Portugal Estonia Croatia Finland.

Main parameter

Motor

Power:750W
Max Torque: 160 N.m
Display: C961 C965 SW102 / 850C 750C DPC18 KD718 500C (colorful display)  Optional
Integrated Controller Current :25A
New Controller Code : 214
Stator Widing : 9T

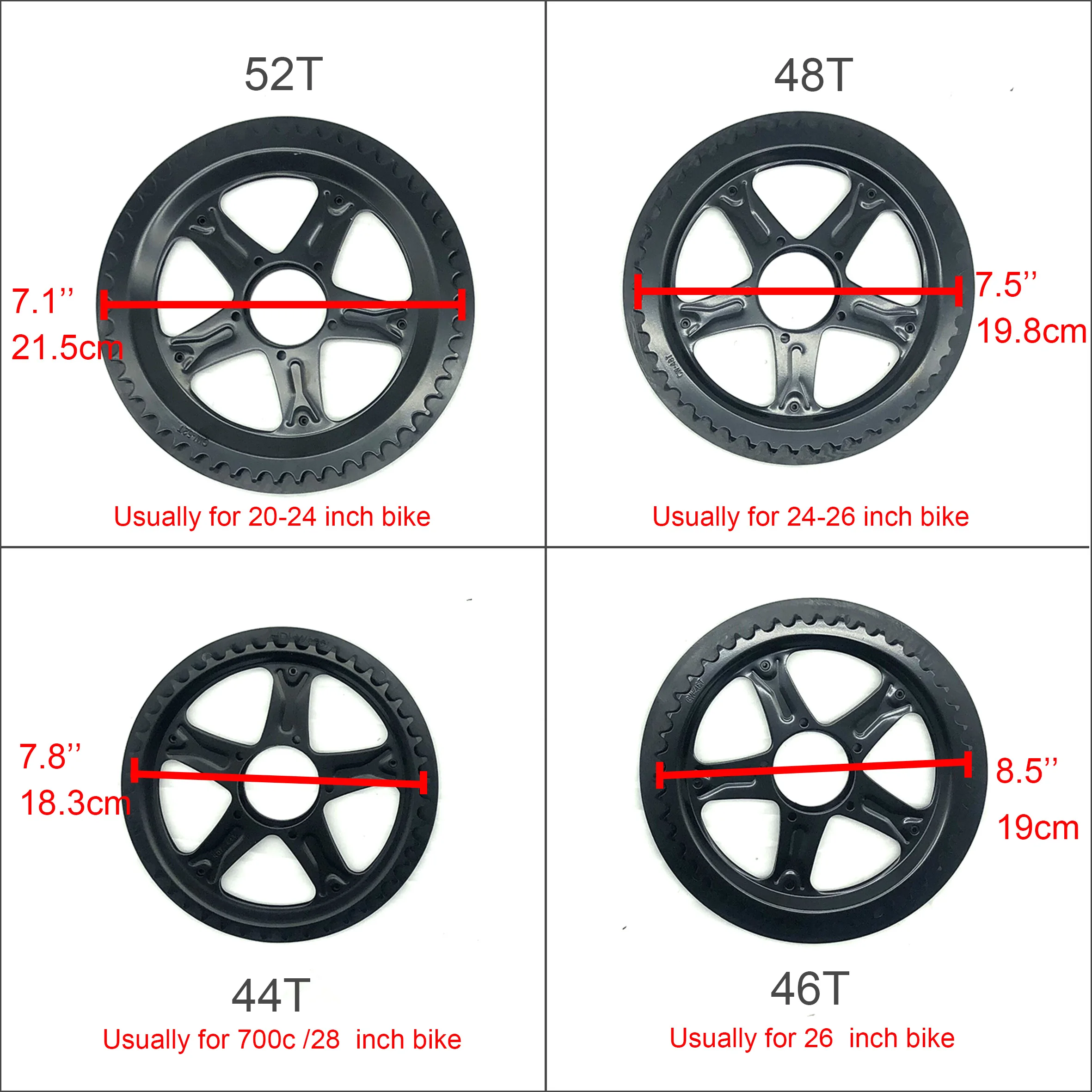

Teeth Number:44T 46T 48T 52T (Optional)

Net Motor Weight: 5.6kg

Bracket bottom length:68mm

Display Working Temperature:-20-80C

Waterproof Grade:IP65

Efficiency ≥80
Pedal sensor: speed sensor
Noise Grade: ＜55dB

​Shaft Standard: JIS
Certifications: CE / EN 14764 / ROHS
Salt Spray Test Standard(h):96

Battery

48V 12.8Ah Specification:
Nominal Voltage: 48V
Nominal Capacity: 12.8Ah
Cell Type: 50 LG3200 Cells
Cell Model: 18650 Cells
Operating Charge Temperature:0～45℃
Operating Discharge Temperature:-20～60℃
StorageTemperature:-20～60℃

​Battery features:
*Maximum 52pcs 18650cells

*4 lever LED capacity indicator

* W/power switch

* Waterproof grade IPX4

* Standard DC 2.1 charging port

* with controller space.

* with spanninga rear light.

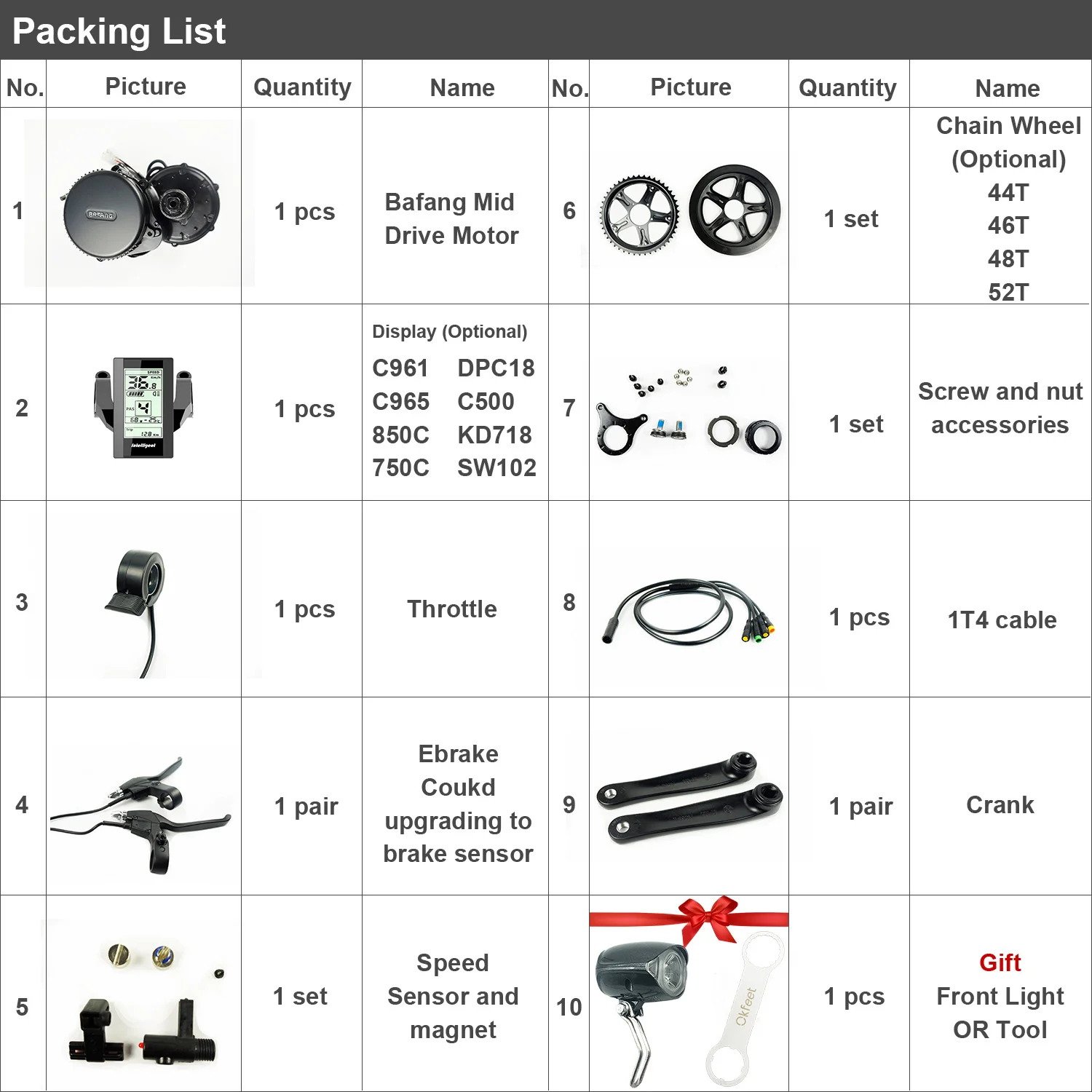

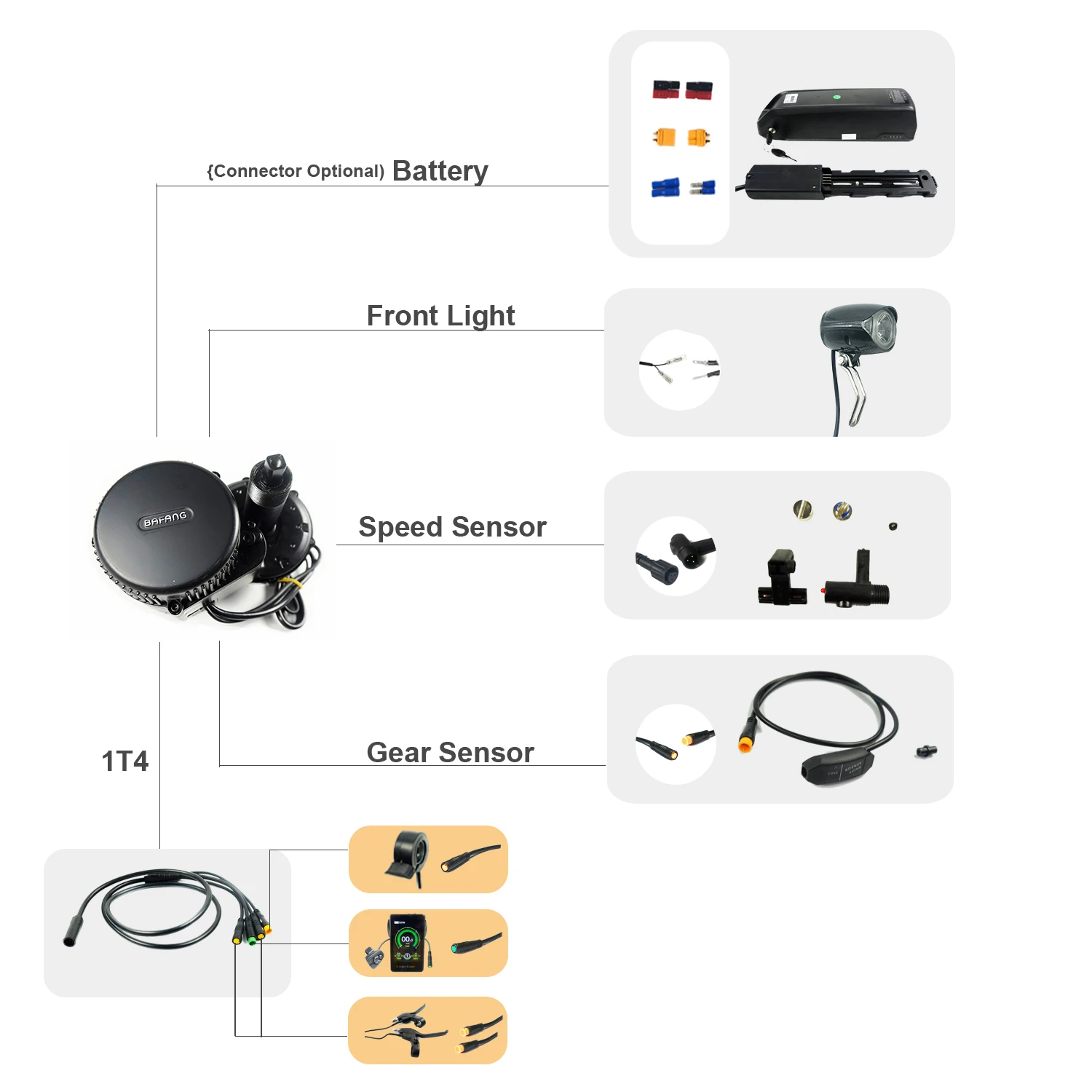

Packaging included:

1 * 48V 750W Mid Drive Motor

1 Pair * Brake Levers (can be changed to brake sensor for free, please kindly leave us message if you need)

1 Pair * Crank

1 Pair * Chainwheel (44T/46T/48T/52T opition, please kindly leave us message if you want change the chain wheel)

1 Set * Thumb Throttle

1 Set * Speed Sensor

1 * Display ( Optional)

1 * 4 in 1 Cable

1 * Accessories
1 * 48V 12.8Ah Li-ion Battery
1 * 48V 2A changer
2 * 36V 250W label

Gifts: 1 pcs 6V Front Light OR a installation tool
           If you need different power connector.Please leave a message.
           Thanks!



	Safe Lock Lock,use to lock the battery on the frame.
	Battery tail light Press the   button the taillight will turn on,press again taillight will turn off.The taillight will not turn off automatically,so when you do not use the battery please turn off the taillight avoid to run out of the battery power.
	Battery level light Press the     button the light will turn on. 1 Red 3 Green---100%    1 Red 2 Green---75% 1 Red 1 Green---50%      1 Red 0 Green---Less than 25%
	Low power warning  If the tail light is low, the low battery warning light will flash.
	Power switch Turn on and off the battery power.''O'' is power off,''-''power on.
	Charge socket The charge current for this socket can not be more than 3 amps.
	Controller Box This battery have space to put the controller.But you need confirm your controller small enough to put in.Normally the controller need to customize.We do not provide the controller.
	Battery install plate Battery install plate.This plate will be installed on the battery when we ship.You can take it off by the key and install it on the bike frame by screw.Then put the battery on it



WARRANTY

Battery:1 year  Parts:3 months  motor:1 years

Based on the purchase data:free repair.Buyer pay for return postage and resend postage.

EXPRESS

Usually we send the goods as the shipping method you choose.But some times we may change the shipping method,also as fast as you choose.Please understand.

SYSTEM MATCH

Before you place the order about controller or display.Please contact us without hesitation and send me some your old conversion system pictures .Because some are same appearance but has different comunication protocol.They may not match your old conversion system.

CUSTOMS TAX

Usually we declare the minimum value to save your customs tax.But due to different policies in different countries,there might be some customs tax should be paid by buyer.So you could leave a message when placing the order about how much value you would like to declare.

FEEDBACK

Your satisfaction will be our best return for serving you. Please give us a five-star rating if you are satisfied with our products.If you are not satisfied,please contact us.We will serve you until you satisfied.
