17.5 Inch Electric Mountain Ebike 2 Wheel Electric Bicycle 250W 36V Carbon Fiber Frame Portable Electric Scooter Samsung Battery

17.5 Inch Electric Mountain Ebike 2 Wheel Electric Bicycle 250W 36V Carbon Fiber Frame Portable Electric Scooter Samsung Battery

Voltage: 36V
Power Supply: Lithium Battery
Foldable: No
Wattage: 200 - 250w
Range per Power: 31 - 60 km
Rated Passenger Capacity: One Seat
Wheel Size: Other
Max Speed: <30km/h
Motor: Brushless
Certification: ce
Frame Material: Carbon Steel
Style: Luxury Type
battery: Samsung lithium battery
frame: Carbon Fiber
oil and gas fork (air resilience/oil dam: Yes
double disc brake: Yes

17.5 Inch Electric Mountain Ebike 2 Wheel Electric Bicycle 250W 36V Carbon Fiber Frame Portable Electric Scooter Samsung Battery

Homemade' Mid crank motor

After years of developing and investigating, we have the strong faith on Mid Crank Motor. Therefore we are now switching our market from Hub motor to Mid motor. Everyone will be surprised with its incredible performance, assisted mode will kick in the power as you start pedalling and add extra power to each cycle, propelling you faster and with less effort.



Stylish Electric bicycle

Our unique mid drive system is the entire crank set so it will assist you pedal directly. It is also connected directly to the bike's chain set. This strategic motor placement will allow the motor to run in its optimum RPM range when the rider utilizes the bike's gearing system. When the rider shifts up in gears, the motor will ride in high gear to reach higher speed. This translate into more efficient motor and a ligher, better balanced bike to increase both motor and battery's service life.



PARAMETER

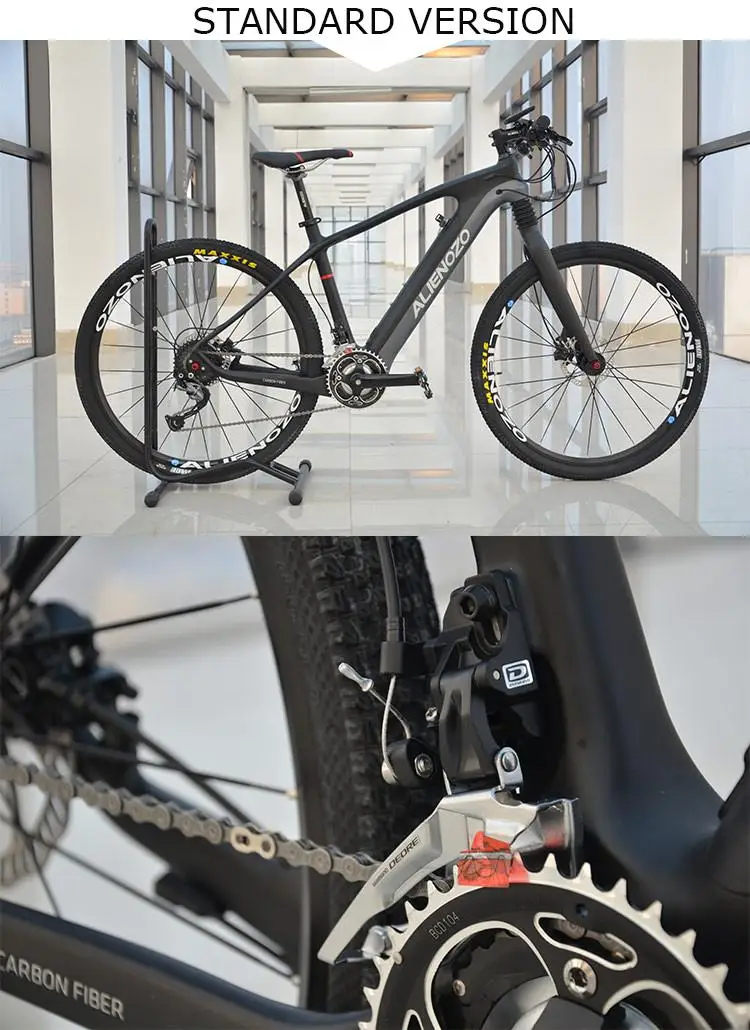

NAME	High-Version       (CM27-101H)	Standard Version (CM27-101S)
Frame Set
Frame	Carbon Fiber 17.5inch frame	Carbon Fiber 17.5inch frame

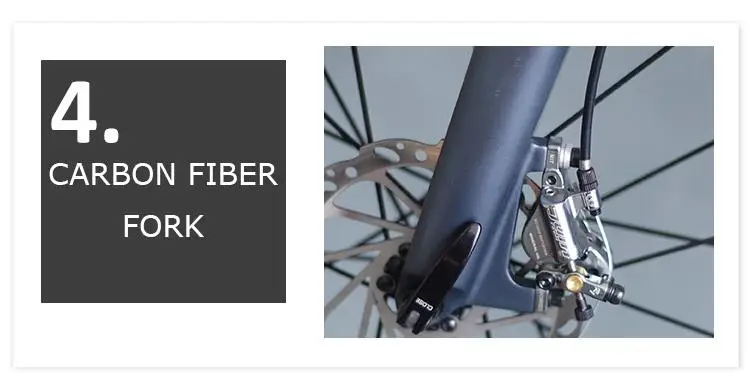

Front Fork	Carbon Fiber front fork or Suntour Epicon	Suntour SR-XCR-RL
Handlebar	Carbon integrated Fiber handlebar	ZOOM Aluminium alloy handlebar
Motor System
Motor	Bofeili G2 mid motor	Bofeili G2 mid motor
Battery	Samsung lithium battery 36V 7.8AH	Samsung lithium battery 36V 7.8AH
Display	APT 800S LCD display Advanced built-in LCD	KING-METER 5S LCD display
Charger	EU/USA	EU/USA
Controller	36V , intelligent controller	36V , intelligent controller
Drivetrain
Brake Lever	DE1	DE1

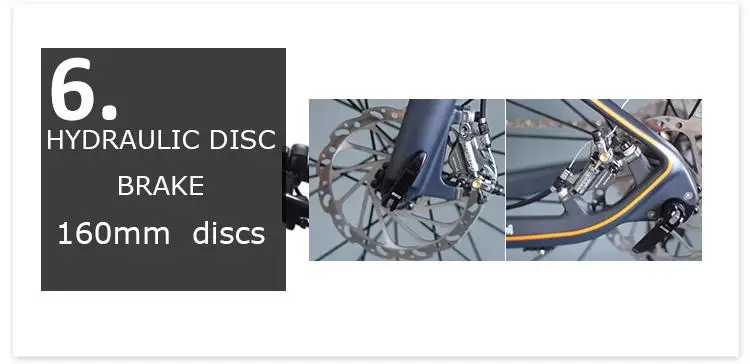

Front Brake	TEKTRO hydraulic power-cut disc brake	TEKTRO hydraulic power-cut disc brake
Rear Brake	TEKTRO hydraulic power-cut disc brake	TEKTRO hydraulic power-cut disc brake
Front Shifter	Shimano SLX  2SPD	Shimano ALIVIO 2SPD
Rear Shifter	Shimano SLX 10SPD	Shimano ALIVIO 9SPD
Front Derailleur	Shimano KFDM66110D6A	Shimano KFDM66110D6A
Rear Derailleur	Shimano KRDM670DSGS 10SPD	Shimano ARDT4000SGSL 9SPD
Others
Wheel Set	CROSSRIDE CR 27.5inch MAVIC	MAVIC 27.5inch
Chain	KMC X10	KMC X9
Tire	27.5'' MAXXIS	27.5'' MAXXIS
Pedal	Weige	Weige
Seat	VELO LOGO	VELO LOGO
Weight	17KG	17KG
Package	140*27*88cm	140*27*88cm

Terms of Service

Configuration

Due to the different production batch, parts may change, we promise all changes there will be no debasement of quality of parts, only USES the equivalent grade configuration to replace, please rest assured purchase.







About Shipping:



1)When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 4-7 days once your payment is completely verified.



2)We do not guarantee delivery time on all international shipments (especially for the china air mailpost) due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.



3) If you have other ideas, please contact our service for changing. Any import charges or tax fees will be at your side. Please note.







About Warranty:



> Warranty 1: body part --- Frame 5 years, front fork 1 year, the other six months, inner and outer tires and other wearing parts are not covered by the warranty;

> Warranty two: electric part --- battery / motor / controller for 1 year, the other 3 months.



We offer the 1-month free replacement. Buyers may request for a replacement within 7days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced. Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will refund or exchange them ASAP.







About Sizes:



The sizes are illustrated with specific measurements in the detailed specifications. Please check the specifications before you place an order. Normally the allowable differences in the size are approximately 0.5 inch in measurement. If you find the size of the products do not fit you, you can directly contact us.







About Colors:



Differences in color may be caused by some other reasons such as color reflection in the monitor, lighting, background etc. However, if you believe that the item received is wrong color, please contact us to see if a return or refund is possible.







About Feedback:



Your feedback is extremely important to us. Please click 5 stars feedback if you like our items and service. I will provide competitive price and better service all the way.



Please contact us before leaving any negative feedback or opening any dispute .We understand the unhappiness you might have if the order go wrong, as we think any problems will be solved after active cooperation and good communication! Thank

The 17.5 Inch Electric Mountain Ebike 2 Wheel Electric Bicycle 250W 36V Carbon Fiber Frame Portable Electric Scooter Samsung Battery is far and away, one of our most popular items. People can't seem to get enough of it.
