Electric 36v350w Front/rear Electric Bike Conversion Kit Brushless Hub Motors with ebike system
Voltage: 36V
Design: Brushless
Wattage: 301 - 400w
Motor Type: Brushless Gear Hub Motor
Brand Name: OUMIAO
Controller: 36V15A
Display: K-LCD1/880 LED
PAS: V8
Throttle: Thumb throttle
Brake sensor: Cut off power Brake Level
Rated power: 350W
Design: Brushless
Wattage: 301 - 400w
Motor Type: Brushless Gear Hub Motor
Brand Name: OUMIAO
Controller: 36V15A
Display: K-LCD1/880 LED
PAS: V8
Throttle: Thumb throttle
Brake sensor: Cut off power Brake Level
Rated power: 350W
Electric 36v350w Front/rear Electric Bike Conversion Kit Brushless Hub Motors with ebike system
| Specification of the motor in this kit | |||
| Rim size: | 20’’~28’’ | ||
| Spoke hole: | 36Holes | ||
| Voltage: | 36V | ||
| Rated power: | 350W | ||
| Efficiency (%) | ≥82% | ||
| Cable side : | Right | ||
| Magnet rate: | 16Poles,20Poles | ||
| Reduction gear ratio: | 1:4.3 | ||
| Fork size: | 100/130mm | ||
| Inside speed sensor: | 1 | ||
| Hall sensor: | With | ||
| Free wheel: | Screw6-7S | ||
| Brake: | Disc brake/V-brake | ||
| Classification of waterproof: | IP54 | ||
| Weight: | 3.4Kg | ||
If you need spoked rim,leave us a message.
Packing List:

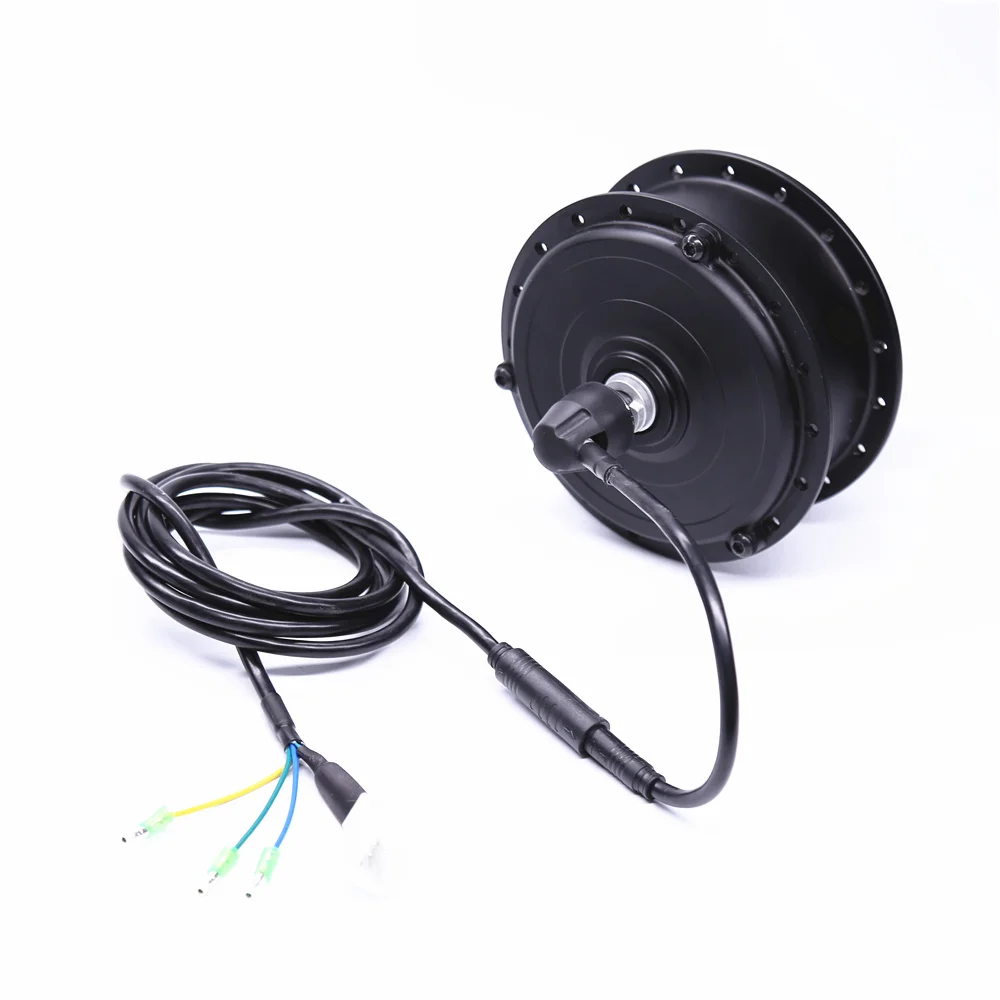

1.36V350W hub motor
(You can choose front or rear hub motor)
2.36V15A block-wave controller
3.Display
(You can choose 880LED or K-LCD1)
4.Thumb throttle
5.V8 PAS
6.Cut off power Brakelever

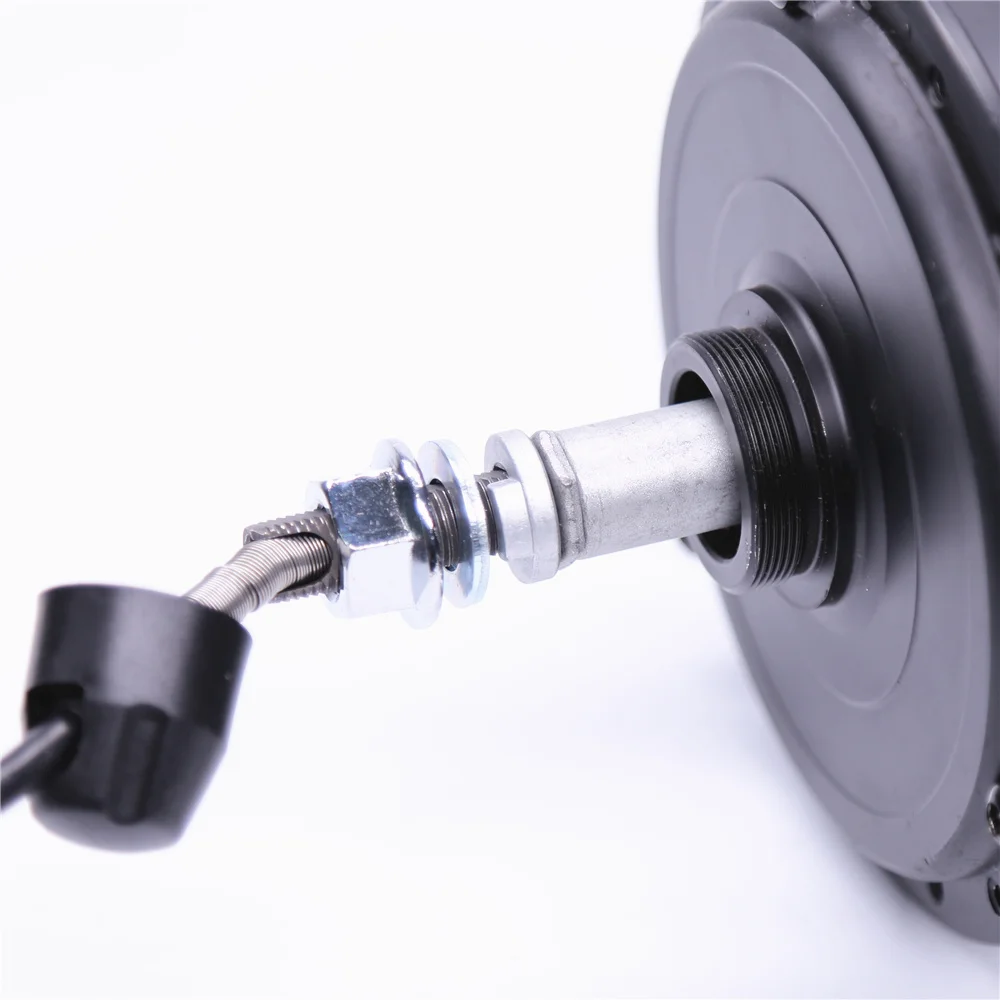

If you choose the rear wheel motor kit,there is a thread for the freewheel:
Tags on wires,easy to install:

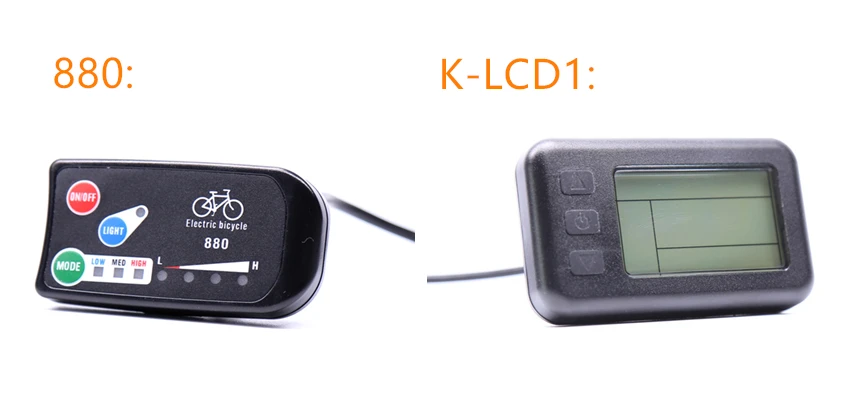

LED and LCD display for choice:
About Us:
We believe that cycling is for everyone, not just the fit and the young. Whether riding a mountain bike through a forest track,climbing the hills on a cross bike, screaming down the hills on a road bike or pulling the kids around on a tag along, few things beat the fun and exhilaration of cycling. It's worth mentioning that with the contribution of electricity,now there is no reason for you to miss out.
That's what we dedicated and why we started our online shop which focus on electric bicycle series ,such as electric bike conversion kits, mountain and city electric bikes, fat tyre electric bikes and relative parts for electric bicycles.
All products we are producing reflect our interests and professionalism.No matter whether you are looking for e-cycles for communiting,touring or random,we can help you with the best choice!
Useful Tips:
• Warranty
One year guarantee.
Within 15 days(base on the delivery data):We will cover the round trip shipping postage.
15 days to one year:We will cover the return postage.
• Packing&Shipping
5 Layer Double Wall Carton,and DHL,FEDEX,TNT,EMS for shipping choise.
• Return Policy
we will refund you if you return the items within 15 days of your receipt of the items and it is only the reason of product itself like defect,damage,anything that is seller's fault,not the buyer's personal preference or failure to use.
On the fence about this Electric 36v350w Front/rear Electric Bike Conversion Kit Brushless Hub Motors with ebike system? Don't be. Let our satisfaction guarantee address your concerns.
