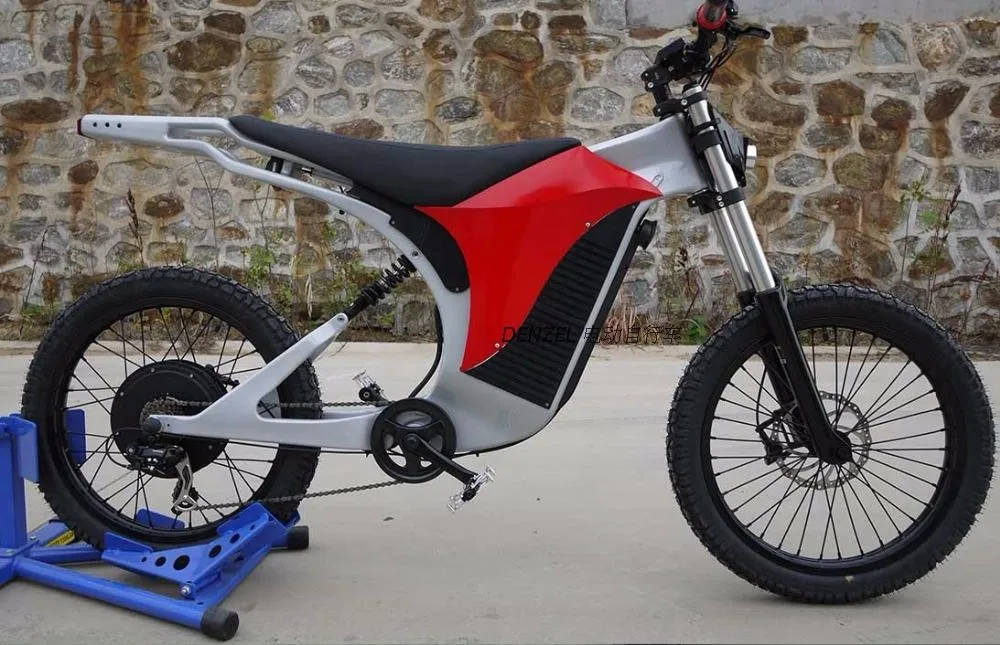

Electric Motorcycle off-road electric mountain bike carbon fiber frame EBIKE electric bicycle mountain ultralight escooter

Electric Motorcycle off-road electric mountain bike carbon fiber frame EBIKE electric bicycle mountain ultralight escooter

Foldable: No
Certification: ce
Style: Luxury Type
Model Number: SU1480
Frame Material: Carbon Fibre
Brand Name: HRTC
Voltage: 48V
Power Supply: Lithium Battery
Motor: Brushless
Wattage: > 500w
Max Speed: >50km/h
Rated Passenger Capacity: One Seat
Wheel Size: 24”
Range per Power: > 60 km

Electric Motorcycle off-road electric mountain bike carbon fiber frame EBIKE electric bicycle mountain ultralight escooter

Carbon fiber frame materials environmental protection material


Speed: 50 km/h


Lithium battery range: 50 km


48 v lithium-ion battery: JAPAN 20 ah


Normal power 1000 w


The highest power 1800 w


Maximum torque of 80 nm

Short Description

Carbon frame – SPARTA – strong and light, beautiful and practical, Big capacity battery for long distance.

Bike has special switcher for setup limit speed

Charging battery then use brake (self charging, regen function)

Quick remove battery for change it.



MOTOR

Motor with two sets of hall sensor, Motor thermal protection against overheating

High efficiency (more then 85%)



CONTROLLER

Sine wave Controller Kelly (USA)  KLS7212S or KLS7218S special for DENZEL, with Bluetooth. Controller install inside frame under seat. Very easy cooling. Controller can be programing by Bluetooth or by PC.

General controller functions:

(1) Extended fault detection and protection. The LED flashing pattern indicates the fault sources. Customers can read the error code in PC software or Android Tablet also.

(2) Monitoring battery voltage. It will stop driving if the battery voltage is too high and it will progressively cut back motor drive power as battery voltage drops until it cuts out altogether at the preset "Low Battery Voltage" setting.

(3) Built-in current loop and over current protection.

(4) Configurable motor temperature protection range.

(5) Current cutback at low temperature and high temperature to protect battery and controller.

(6)The controller keeps monitoring battery recharging voltage during regen braking.

(7)Configurable motor over-temperature detection and protection

(8) 3 hall position sensor inputs. Open collector, pull up provided.

(9) Enhanced regen brake function. A novel ABS technique provides powerful and smooth regen. The regen can happen at any speeds until zero speed.



BATTERY

Battery type: Lithium Ion

We use Panasonic and Sanyo cells

Battery life: 600 cycles

BMS – protect battery from low voltage, over voltage, over current.

Standard charger: 5A (option: 10A)



OTHER:

Electronic brake system (EBS), analog electronic brake system.

Cruise control, Waterproof cable system.

Warranty for frame 5 years, for other parts 1 year, Battery 50 000 km or one year.

Support parts this bike for 15 years after selling

Service: very easy to repair and change any parts (controller, motor, DC/DC and so on), also can use Bluetooth to monitoring status of controller and motor.

We can offer this bike with other configuration – if you need change configuration – please contact with us.

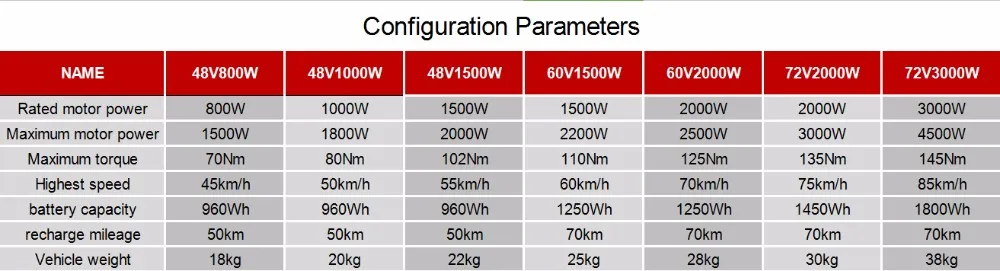

Performance and parameters:





1, the battery is full of 54 V, the minimum power value of 41V



2, the outer tire model: 24 "X3" (Denzel bike)



3, the electronic liquid oil brake (203 discs) system (front brake, rear drum brake)



4, the rear brake can help the battery automatically punching



5, electronic remote control key



6, speed (1-7 files)



7, black lampshade (headlamp LED, rear light LED, brake light LED)



8, can be optional DNM fork, turn signal, the specific cost, please contact the owner



9, front and rear mud plate







Safety performance:



1, the whole car three brake systems (front brake, rear brake, power brake)



2, lights and speakers



advantage:



1: The battery is full, traveling 70 km.



2: The whole material is made of high-tech environmental protection material, safe, tasteless, high efficiency and environmental protection.

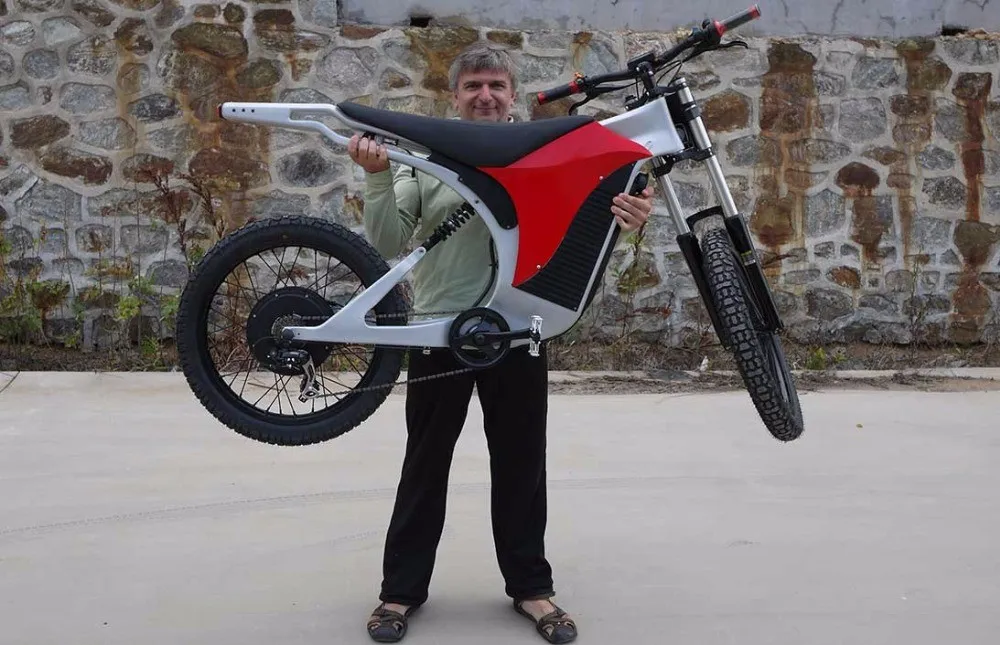

3: The whole car weighs 20 kg



Shipping



Customs Charge (Import Tax)



For Russian customers and customers in most EU countries you do not have to pay any customs duties, we are responsible for customs clearance and customs duties. Please do not worry.





Paying tax is the duty of every citizen, buyer need to take the responsibility of all of taxes. If the buyer refuses to receive the goods because of the tax problem, they need to pay for all the freight.

* Most of our deals are promoted with free shipping (for selected countries only) by DHL/FEDEX/EMS/UPS and etc but at seller convenient option only, as we sometime has very limited selecting options duo to the IATA policy to lithium battery.



Direct manufacturers, the products are sold to home furnishings, authentic, enjoy high-quality pre-sale and after-sale service.



   We are warmly welcome client from Russia, we would try best to clear the custom and pay the tax at our sider. The items are well-packed with strong packages, we provide fast express from our side. (the Russian market only). But the express usually take longer time (even about 30 days, if you are not in Moskow) than other coutries need your friendly understanding. Some countries need to have customs clearance ability, please carefully, if not the Guest clearance, will bear the relevant expenses.





   Lithium batteries according to customs requirements, different countries in different ways, most countries need to sub-shipment of lithium batteries to send, so we will do the best way to send, lithium batteries to send the tariffs required to pay the consignee, we will Do May be lower the declared value, reduce your tariffs. Including but not limited to.



Packaging



We have strict packaging before shipment, but still cannot be ruled out in the process of transportation wear, knock against the phenomenon, please understand.We will try to be the best.





Return&Exchange policy



* All of our offers are backed by 100% satisfaction guarantee,if for reasonable reason you are not satisfied ,you can return the item to us in it's original condition for a refund or an exchange.Before mailing us back the item,please contact us For the detailed return&exchange instruction.We will return all your money except the shipping and handling fees after we receive your return items.



Feedback policy



* We will provide positive feedback once payment is received,To foster a healthy Ali community,we hope you will do the same for us.We want you to understand that we value customer service tremendously.If you have any dissatisfaction,please give us the Opportunity to resolve the problem before leave us a negative feedback. We are sure that there is always solution and we sure don't want a bad feedback to be where the transaction ends.







Additional Notes



  You need to use the adapter in proper way together with original plug when you are charging our vehicle.



*Endurance:depending on the driver’s weight, different road conditions and driving style, distance will vary.



*Limit climbing angle: different weight according to the driver, the speed is different, have a different point of view.



* Mix order welcome, OEM order welcome. We also can export quantity goods at client's specific request as a manufacturer.



*If you have any question please feel free to contact us. We will reply within 24 hours.

Life is too short to live without the Electric Motorcycle off-road electric mountain bike carbon fiber frame EBIKE electric bicycle mountain ultralight escooter. Be happy. Be Content. Be Satisfied.
