Color display Waterproof 36v250w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel Ebike System

Color display Waterproof 36v250w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel Ebike System

Brand Name: OLOEY
Voltage: 36V
Design: Brushless
Wattage: 201 - 300w
Motor Type: Brushless Gear Hub Motor
Bafang motor Model: FRM G01.250.D
Controller: Sin-wave 36V15A 6 mosfets
Display: 500C/850C
PAS: DH12 PAS (12 magnets)
Throttle: Thumb throttle
Brake sensor: Optional
Rated Power: 250W
Controller Size: 83mm*54mm*30mm
Connector type: Higo Waterproof

Color display Waterproof 36v250w Bafang Front/rear Electric Bike Conversion Kit Brushless Hub Motors Motor Wheel Ebike System

	SPECIFICATIONS of the motor in this kit
	Core Data
	Position	Front Motor	Mounting Parameters
	Wheel Diameter (Inch)	20/26/27.5/28	Brake	Disc Brake
	Construction	Gear drive	Installation Widths	100/135
	Rated Voltage (DCV)	36	(mm / OLD)
	n0 (Rpm)	290 ; 250	Max. Housing Diameter	135
	Rated Power (W)	250	(mm)
	nT(Rpm)	255 ; 220	Cabling Route	Shaft Side, Right
	Max Torque	32 N.m	Cable Length(mm),	250 G9.1
	Efficiency (%)	≥ 80	Connection Type
	Color	Black / Silver	Spoke Specification	36H*13G
	Weight (kg)	3
	Noise Grade (dB)	< 55	Further Specifications
	Operating Temperature	-20-45℃	Speed Detection Signal	6
	Tests & Certifications		(Pulses/Cycle)
	IP	IP 65	Reduction Ratio	1:4.42
	Certifications	ROHS/CE	Magnet Poles (2P)	20
	Salt Spary Test Standard(h)	96

If you need spoked rim,please leave us a message.

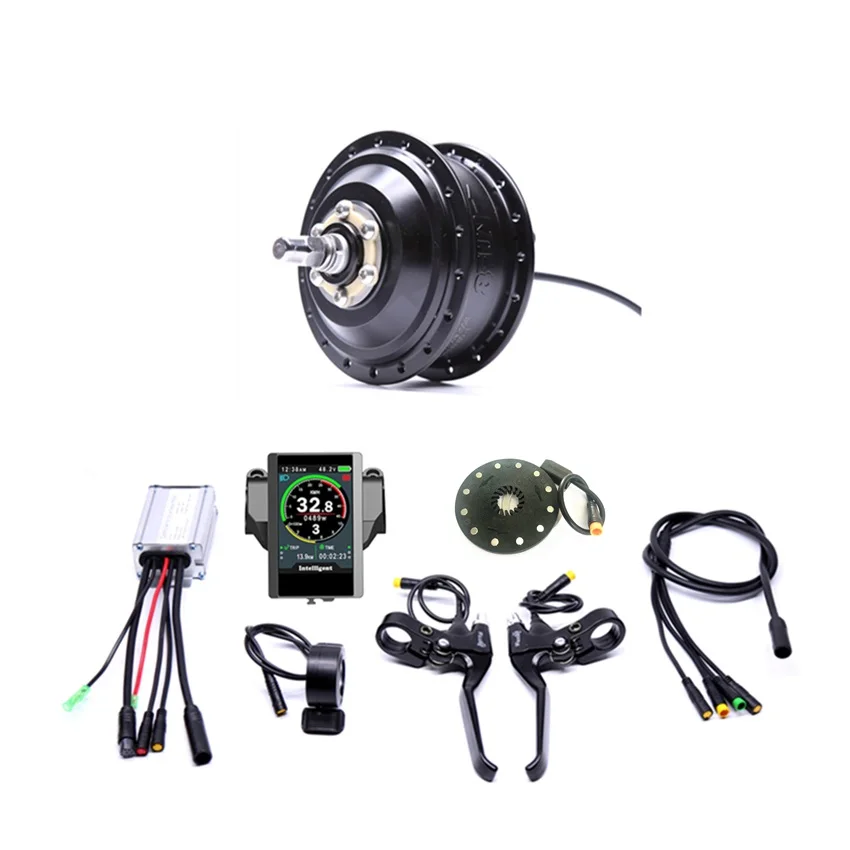

Packing List:

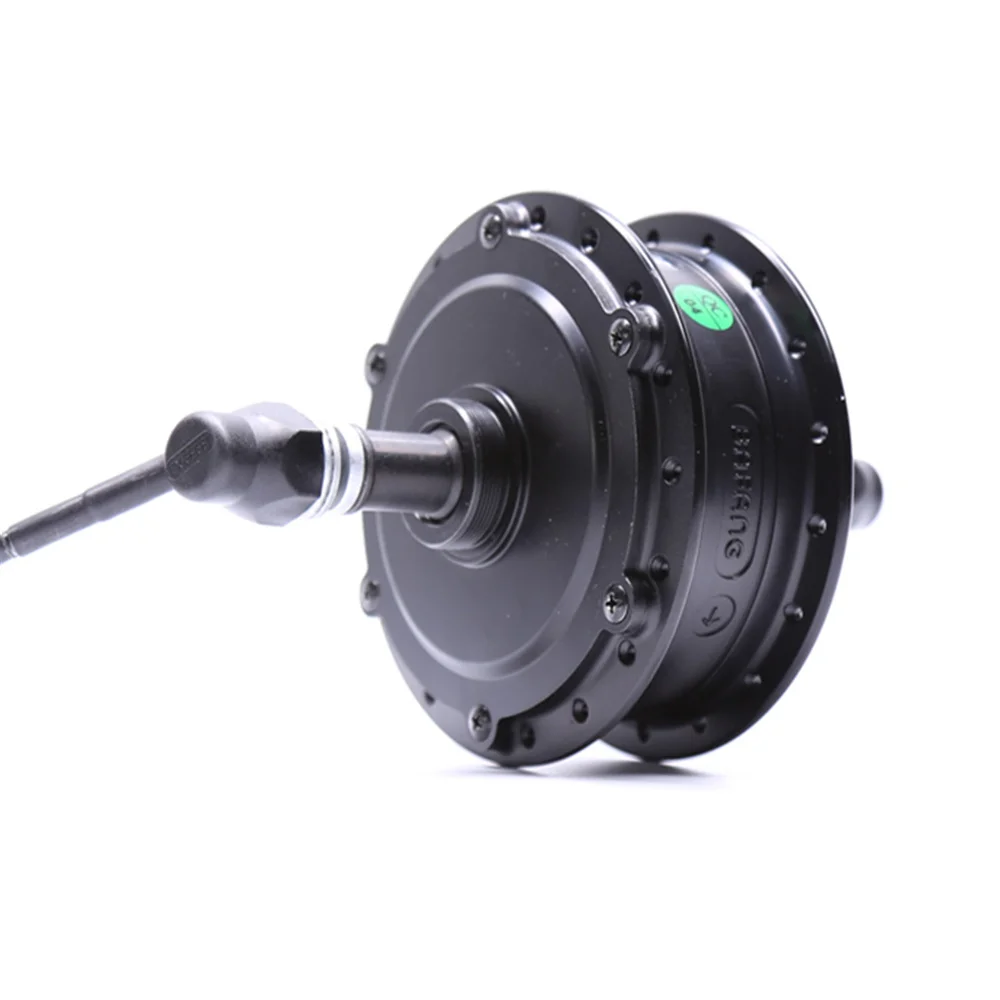

1) 36V250W BAFANG  hub motor

(You can choose front or rear hub motor)

2) 36V15A 6 mosfets Sin-wave controller

3) EB-BUS 1T4 waterproof cable (80cm)

4) Motor cable (180cm for front motor, 100cm for rear)

5) Color display

(You can choose 500C or 850C, see photos below)

6) Left&right Thumb throttle

7) DH12 PAS (12 magnets)

8) EB-BUS and PAS extension cable

(Suitable for the battery installed at any position)

9) Cut off power Brakelevers

(If you prefer the cable brake or hydraulic brake sensor, please leave us a message)

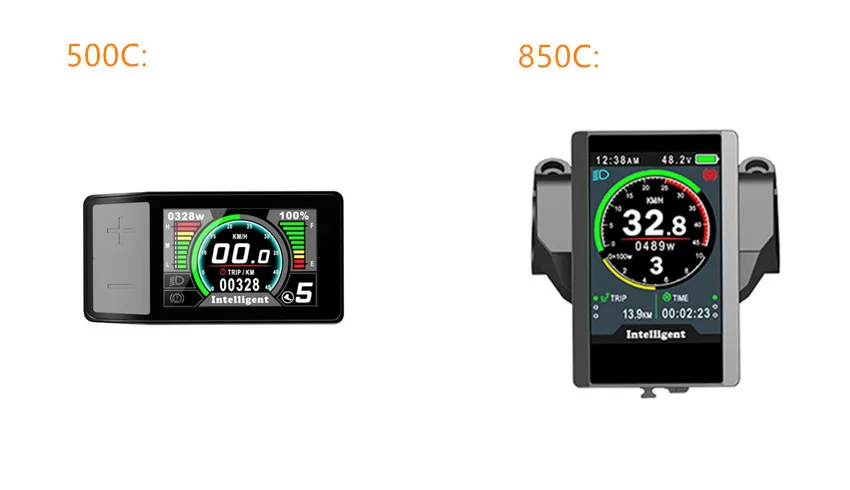

500C and 850C color display for choices:



If you choose the rear wheel motor kit,there is a thread for the freewheel:
