Rear Rack Ebike Battery 36V 20Ah 18Ah 10Ah + Charger 500W Electric Bicycle Bafang Batteries for BBS02 BBS01 500W 350W 250W Motor
Brand Name: UNITPACKPOWER
Capacity: 10 - 20Ah
Voltage: 36v
Type: Lithium Battery
Capacity: 10Ah 18Ah 20Ah optional
Cell: Brand 18650 3.7V 2500mah Cells
BMS: 20A
Charger: 42V 2A
Color: black/Silver optional
Weight: <5.3KG
Size: 360*150*68mm
Certificate: CE/ROHS/UL/MSDS/UN38.3
Cycle Life: 800-1000 cycles
Case: Aluminium alloy
Warranty: 12 months
Application: E-bike / E-scooter /E-motocycle
Fits Motor: 36V 500W 350W 250W 200W
Capacity: 10 - 20Ah
Voltage: 36v
Type: Lithium Battery
Capacity: 10Ah 18Ah 20Ah optional
Cell: Brand 18650 3.7V 2500mah Cells
BMS: 20A
Charger: 42V 2A
Color: black/Silver optional
Weight: <5.3KG
Size: 360*150*68mm
Certificate: CE/ROHS/UL/MSDS/UN38.3
Cycle Life: 800-1000 cycles
Case: Aluminium alloy
Warranty: 12 months
Application: E-bike / E-scooter /E-motocycle
Fits Motor: 36V 500W 350W 250W 200W
Rear Rack Ebike Battery 36V 20Ah 18Ah 10Ah + Charger 500W Electric Bicycle Bafang Batteries for BBS02 BBS01 500W 350W 250W Motor
Product features and advantages:
Materials:
1. The battery pack used top quality Cells, long runtime, deep discharge recover, extended service life and superb performance. This Li-ion battery pack, It has a great cycle life: 800-1000 Cycles with DOD 80%, no acid (No spill or leak problems)
2. with high quality in-built BMS, protect the battery from short circuit,overcharged,over discharge and Over current.
3. Hard Aluminum Case, can be mounted in most positions, it resists vibration, shock, and is small and lightweight.

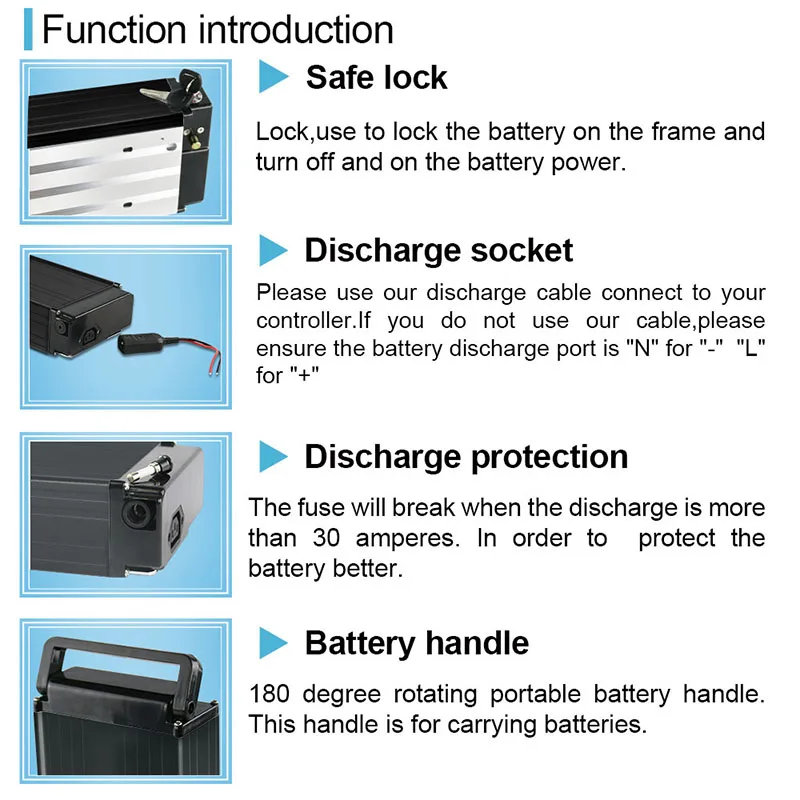

Additonal Functions on battery:
1. with convenient Charge port/ Discharge port
2. Lock with Keys for securely locks the mount on bike frame
Unique advantage:
1. Classical Style Rear Rack Battery, longer capacity is available up to your choice.
Electric Bicycle Battery Specifications:
Model: T032 Classical Rear Rack style Li-ion E-bike Battery
Cells: 18650 3.7V 2500mAh Cells
BMS: 20 Amp max continuous and 70±10Amp max peak current
Fit for Motor : 36V 250W 350W 500W Motors
Charge Current: 2-3 A
Charge Cut-off Voltage: 42V
Discharge Cut-off Voltage: 28-30 V

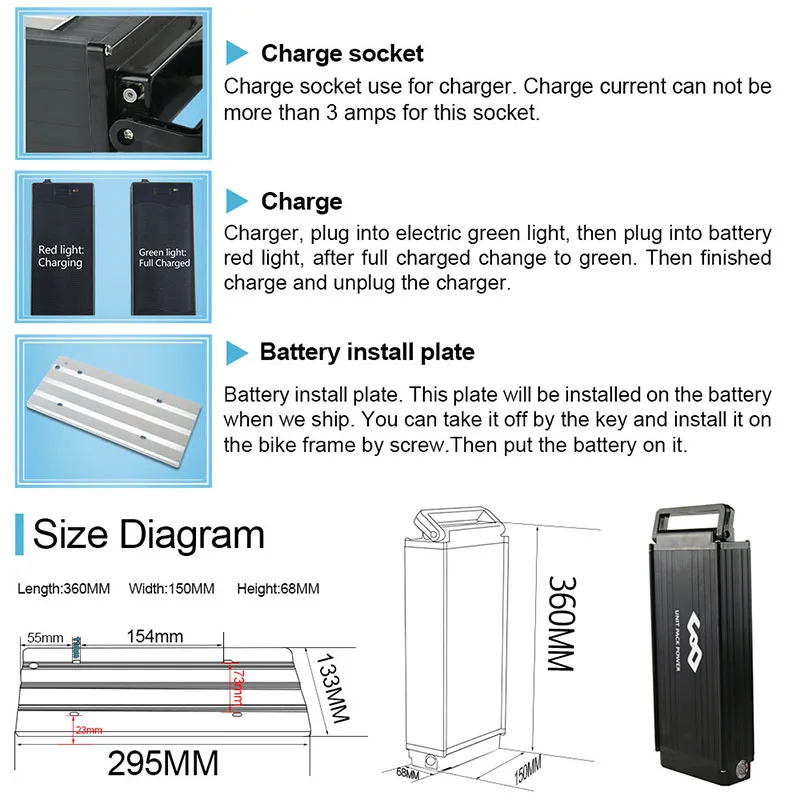

Battery Dimension: 360*150*68mm (Length*Width*Height)
Battery Net Weight: 3.8kg

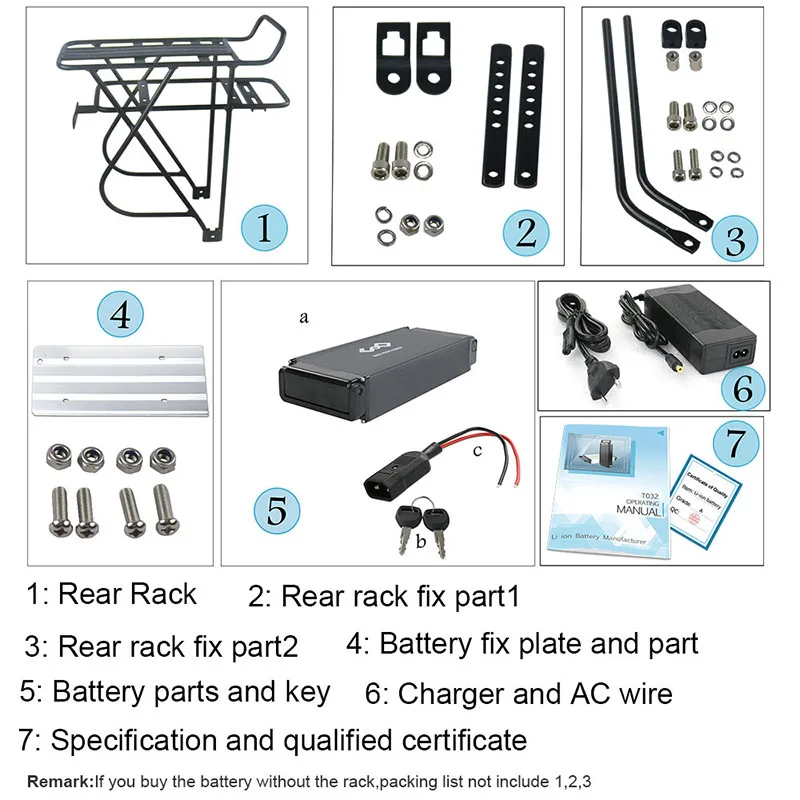

Packing List included:
1 x Lithium Battery Built-in 18650 cells and 20A BMS
2 x Keys
1 x Battery holder, with 25CM discharge naked cable or soldered default connector if without requested
1 x 42V 2A Charger, with AC plug for US EU AU UK Standard , will provide as delivery country's standard if without requested
This item don't include rear rack, if need rack also, please kindly contact us.

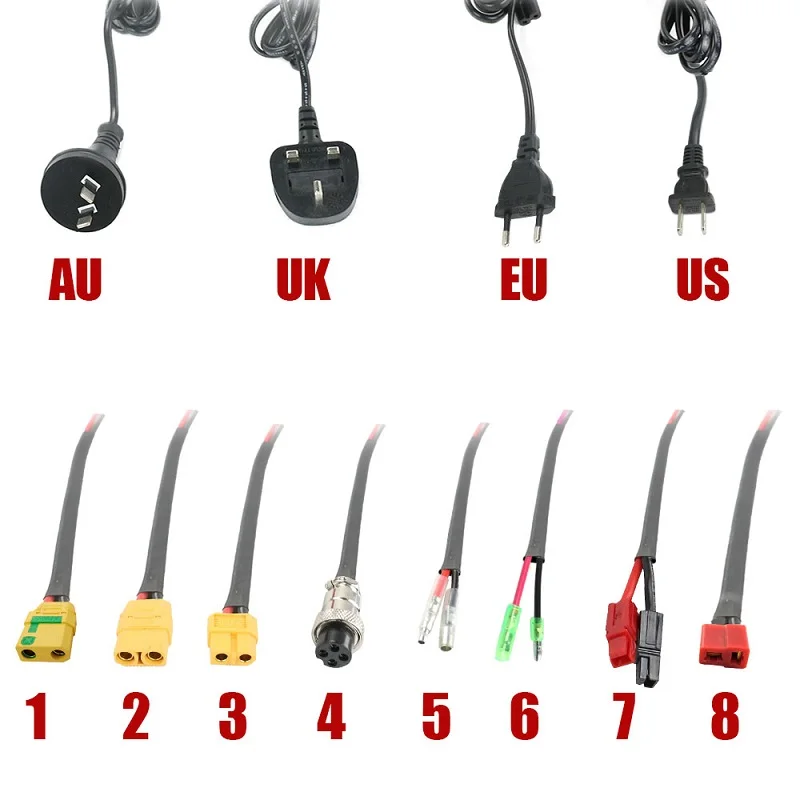

Please kindly choose and tell us the correct charger plug and the correct discharge connector you need.
Ebike Battery Pictures:
Shipping Ways
Guarantee
We provide 1 year warranty for all electric bike batteries.
Any battery with quality problem in o n e month we can return the money after you provide the proof.
After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.
All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.
Top brand lithium battery manufacturer in China, rest assured to buy.
We don't supply warranty service for the following situation :
The battery goes over water
The battery is broken man-made
The cells are burnt out after using .
Return the battery without reason
Open a case without contacting us
Feedback
Our battery can fit all motor kit, but exclude these four : Bosch, SHIMANO, Yamaha, Panasonic .
Please contact us, If you can't conifrm your motor.
If you have any problems please feel free to contact us BEFORE you leave negative feedback or file a case.
Any problem is not a problem, as long as you contact us.
Your satisfaction and positive feedback is very important to us.
Please kindly leave positive feedback and 5 Stars for us if you are satisfied with our items and services.
Company Information:
FAQ
Q: What type of this electric bike battery?
A: It is li ion battery,Chemical is Li(NiCoMn)O2.
Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?
A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.
Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.
Q: Do your e-bike battery come with charger?
A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.
Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
Lithium battery features
Longer battery life, the life expectancy is two times that of lead-acid batteries.
Rechargeable and no memory effect.
The weight is more lighter.
Smaller dimensions and can be customized.
Safer and more environmentally friendly, No heavy metals and hazardous substances.
BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .
Warnings
Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
The Rear Rack Ebike Battery 36V 20Ah 18Ah 10Ah + Charger 500W Electric Bicycle Bafang Batteries for BBS02 BBS01 500W 350W 250W Motor is far and away, one of our most popular items. People can't seem to get enough of it.
