UPP Ebike Battery 48V 20Ah 52V 20Ah Triangle Electric Bicycle Battery for 1000W 750W Motor Bafang BBS03 BBSHD BBS02
Brand Name: UNITPACKPOWER
Capacity: 10 - 20Ah
Voltage: 48v
Type: Lithium Battery
Capacity: 52V 20Ah/ 48V 20Ah optional
Cell: Brand 18650 3.7V 2500mAh 8A 3C Cells
BMS: 30A (/40A/50A optional)
Fit for Motor: 48V 52V 1000W 750W 500W
if with 40A/50A BMS: fit for 1500W 1800W Motor
Charger: 58.8V 2.5A/ 54.6V 2.5A/2A optional
Composed Type: 14S8P/ 13S8P (14/13 Series 8 Parallels)
Size: 364*232*64*343*80mm
Weight: 6.5KG
Cycle Life: 800-1000 Cycles
Warranty: 12 months
Type: Hard Plastic Case Triangle Battery
Capacity: 10 - 20Ah
Voltage: 48v
Type: Lithium Battery
Capacity: 52V 20Ah/ 48V 20Ah optional
Cell: Brand 18650 3.7V 2500mAh 8A 3C Cells
BMS: 30A (/40A/50A optional)
Fit for Motor: 48V 52V 1000W 750W 500W
if with 40A/50A BMS: fit for 1500W 1800W Motor
Charger: 58.8V 2.5A/ 54.6V 2.5A/2A optional
Composed Type: 14S8P/ 13S8P (14/13 Series 8 Parallels)
Size: 364*232*64*343*80mm
Weight: 6.5KG
Cycle Life: 800-1000 Cycles
Warranty: 12 months
Type: Hard Plastic Case Triangle Battery
UPP Ebike Battery 48V 20Ah 52V 20Ah Triangle Electric Bicycle Battery for 1000W 750W Motor Bafang BBS03 BBSHD BBS02
Product features and advantages:
Materials:
1. The battery pack used high quality Brand Cells, long runtime, deep discharge recover, extended service life and superb performance. This Li-ion battery pack, It has a great cycle life: 800-1000 Cycles with DOD 80%, no acid (No spill or leak problems)
2. with high quality in-built BMS, protect the battery from short circuit,overcharged,over discharge and Over current.
3. Waterproof and Solid plastic Case, can be mounted in most positions, it resists vibration, shock, and is small and lightweight.
Unique advantage:
1.With patent private mold hard plastic triangle case, other manufacturer don't have and can't copy, the case is so stronger a lot than normal cloth triangle bag.
2.With high power high voltage and high capacity.
Electric Bicycle Battery Specifications:
Model: U004 Triangle style Li-ion E-bike Battery
Nominal Voltage and Rated Capacity: 52Volt 20Ah/ 48Volt 20Ah / Watt Hours: 1040Wh(52*20)/ 960Wh (48*20)
Configuration : 14/13Series 8Paralles 14/ 13S 8P
Cells: Brand 18650 3.7V 2500mAh Cells
BMS: default 30 Amp max continuous and 100±10Amp max peak current
Options: "48V20Ah 2A charger" / "48V 20Ah" with default 30A BMS:
Fit for Motor : 48V 1000W 750W 500W 250W Motors
Options: "52V 20Ah" with default 30A BMS:
Fit for Motor : 52V 1000W 750W 500W 250W Motors
or 48V 1000W 750W 500W 250W Motors( if your 48V motor support 52V battery)
Options: " 52V20Ah with 40A BMS"
Fit for Motor: 52V 1500W 1200W 1000W 750W... Motors
or 48V 1500W 1200W 1000W 750W... Motors(( if your 48V motor support 52V battery)
Options: " 48V20Ah with 50A BMS"
Fit for Motor: 48V 1800W 1600W 1500W 1200W 1000W 750W...
(Note: battery voltage should keep same with motor, most of 52V battery can work on 48V motor, but before you choose 52V batttery for 48V motor, please double check with motor seller wether their 48V motor support 52V battery.
Charge Current: 2-5 A
Charge Cut-off Voltage: 58.8V/54.6V
Discharge Cut-off Voltage: 39.2-42V/36.4-39 V

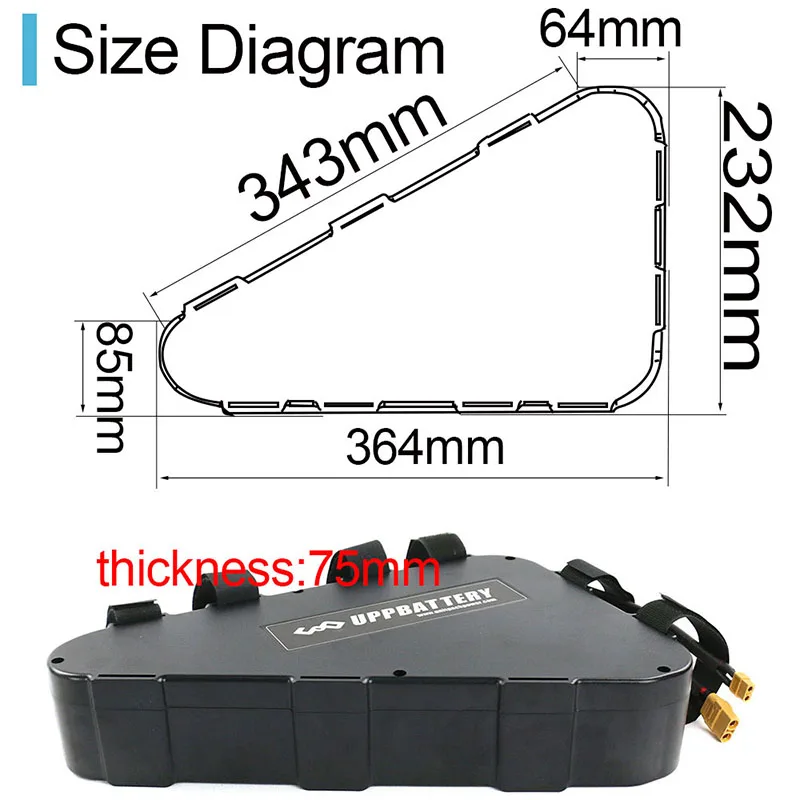

Battery Dimension: 364*232*64*343*80mm (as below picture)
Battery Net Weight: <6.5kg
Packing List included:
1 x Lithium Battery Built-in cells and 30A BMS
with 25CM discharge naked cable, or soldered default discharge connector
1 x 2A/2.5A or 3A Charger
If send from China: 2.5A default ( if need 2A, please choose with 2A)
if send from Germany: 2.5A or 3A charger different apperance, random delivery.
Charger plugs and Discharge connectors optional(ship from China):
1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without requested.
2. Discharge Connector: There are 8 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.
But If send from USA or Germany, with default US plug from US, EU plug from Germany, the discharge cable is soldered with number 7 Anderson connector or number 3 connector already, can't be changed.

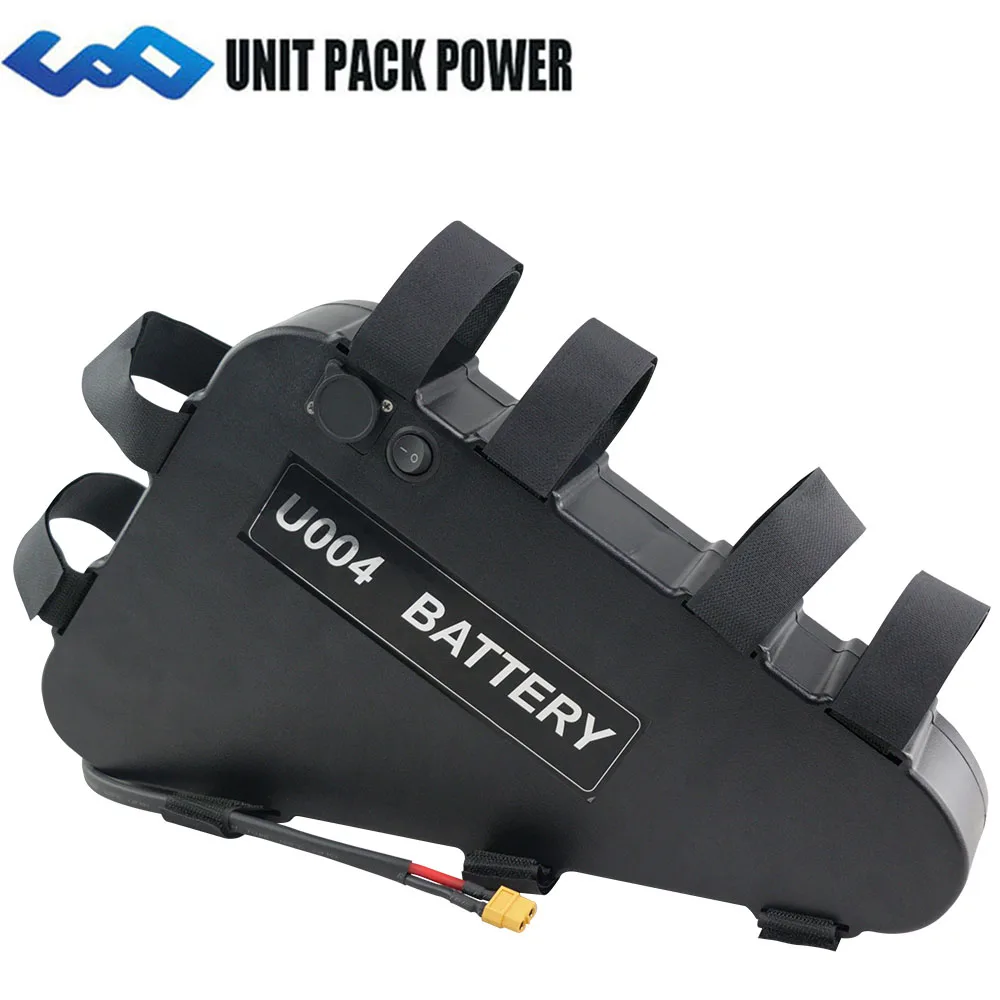

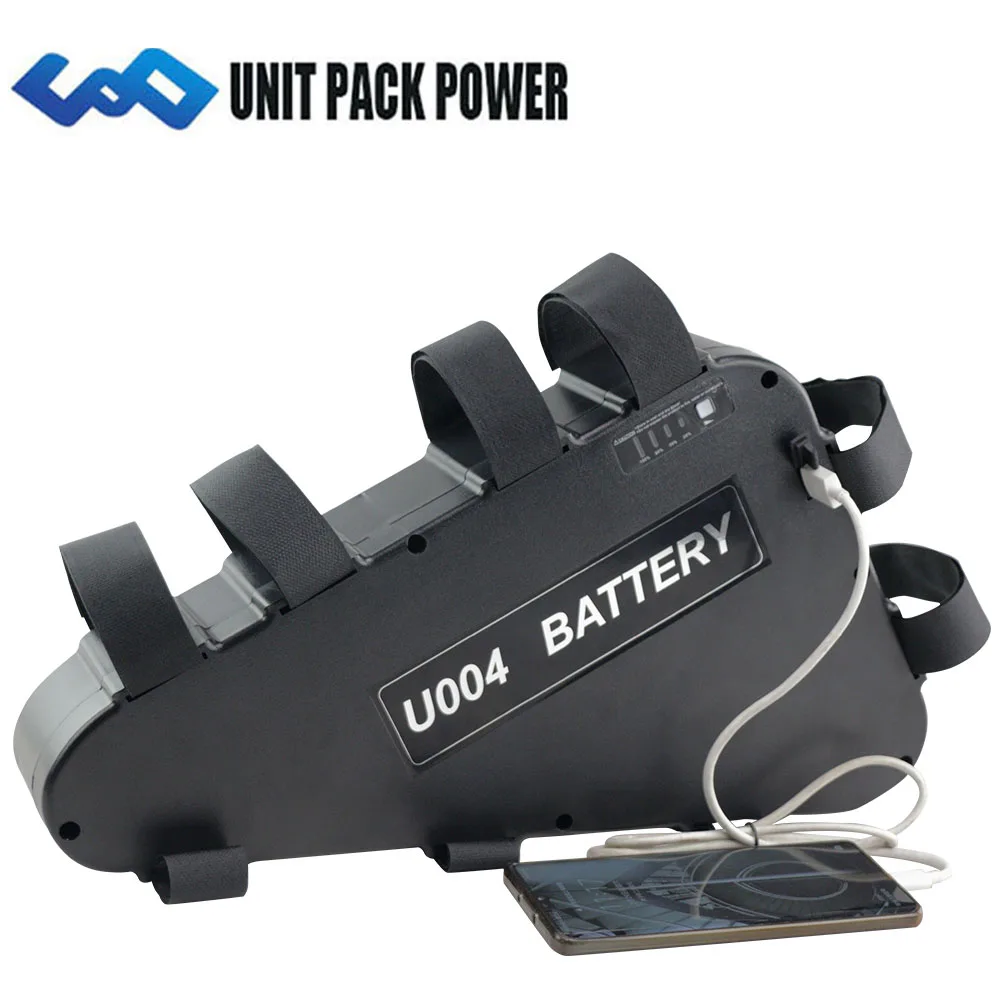

Please Attention: If send from China, the battery have update to new version, have on/off Switch and USB Port
(As the picture show)
Please Attention: if send from Germany, the battery is old version, have no on/off Switch and USB Port (As (the picture show)

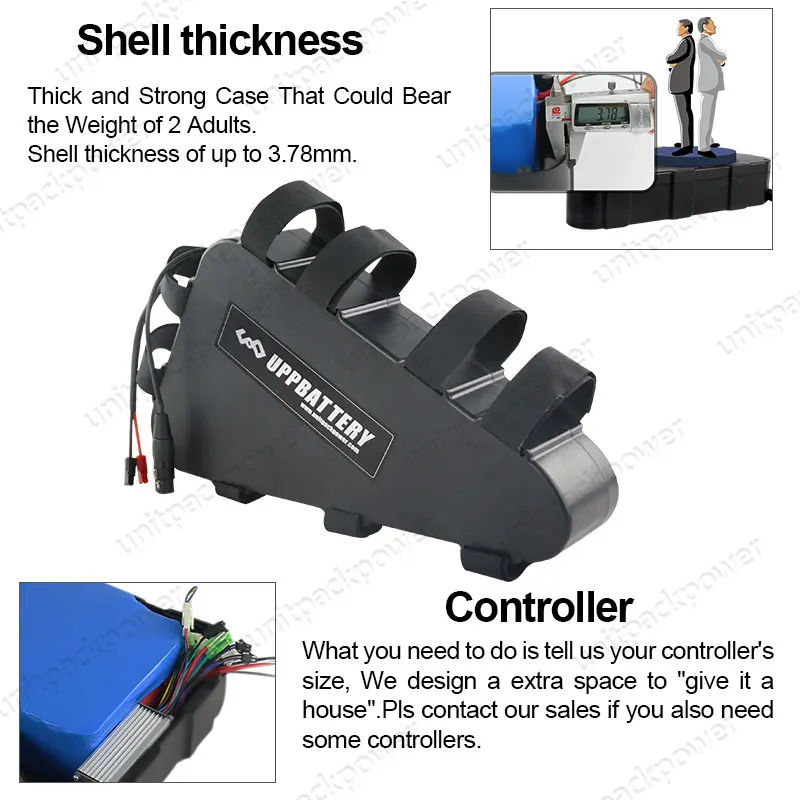

Only when the battery with lower voltage or smaller capacity then may have extra space for controller;
If the battery with 52V 20Ah, 48V 20Ah, then the battery shell has no any extra space for controller.
Shipping Ways
Guarantee
We provide 1 year warranty for all electric bike batteries.
Any battery with quality problem in o n e month we can return the money after you provide the proof.
After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.
All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.
Top brand lithium battery manufacturer in China, rest assured to buy.
We don't supply warranty service for the following situation :
The battery goes over water
The battery is broken man-made
The cells are burnt out after using .
Return the battery without reason
Open a case without contacting us
Feedback
Our battery can fit all motor kit, but exclude these four : Bosch, SHIMANO, Yamaha, Panasonic .
Please contact us, If you can't conifrm your motor.
If you have any problems please feel free to contact us BEFORE you leave negative feedback or file a case.
Any problem is not a problem, as long as you contact us.
Your satisfaction and positive feedback is very important to us.
Please kindly leave positive feedback and 5 Stars for us if you are satisfied with our items and services.
Company Information:
FAQ
Q: What type of this electric bike battery?
A: It is li ion battery,Chemical is Li(NiCoMn)O2.
Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?
A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.
Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.
Q: Do your e-bike battery come with charger?
A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.
Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
Lithium battery features
Longer battery life, the life expectancy is two times that of lead-acid batteries.
Rechargeable and no memory effect.
The weight is more lighter.
Smaller dimensions and can be customized.
Safer and more environmentally friendly, No heavy metals and hazardous substances.
BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .
Warnings
Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
UnitPackPower batteries have insured to China Ping An Insurance, rest assured to buy.
Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the UPP Ebike Battery 48V 20Ah 52V 20Ah Triangle Electric Bicycle Battery for 1000W 750W Motor Bafang BBS03 BBSHD BBS02.
