UPP Mini Bottle Battery 36V 10.5Ah Ebike Small Water Bottle Sanyo Cell Battery 36V With 42V 2A Charger for 500W 350W 250W Motor

UPP Mini Bottle Battery 36V 10.5Ah Ebike Small Water Bottle Sanyo Cell Battery 36V With 42V 2A Charger for 500W 350W 250W Motor

UNITPACKPOWER
Capacity: 10 - 20Ah
Voltage: 36v
Type: Lithium Battery
Capacity: 10.5Ah
Charger: 42V 2A
BMS: max 20Amp continuous 70Amp instant
Cell: Sanyo 18650 3.7V 3500mAh cells
Fit for motor: 36V within 500W
Composed Type: 10S3P
Weight: 2.2KG
Size: 315*90*90mm(including mount holder)
Certificate: CE/ROHS/UL/MSDS/UN38.3
Application: E-bike / E-scooter /E-motocycle
Cycle Life: 800-1000 cycles
Warranty: 12 months
Model: S001
Color: Silver/Black optional

UPP Mini Bottle Battery 36V 10.5Ah Ebike Small Water Bottle Sanyo Cell Battery 36V With 42V 2A Charger for 500W 350W 250W Motor

Product features and advantages:



Materials:

1. The battery pack used original Sanyo Cells,  long runtime, deep discharge recover, extended service life and superb performance.  This Li-ion battery pack, It has a great cycle life: 800-1000 Cycles with DOD 80%, no acid (No spill or leak problems)



2.  with high quality in-built BMS,  protect the battery from short circuit,overcharged,over discharge and Over current.

3.  Waterproof and Solid plastic Case,  can be mounted in most positions, it resists vibration, shock, and is small and         lightweight.



Additional functions:

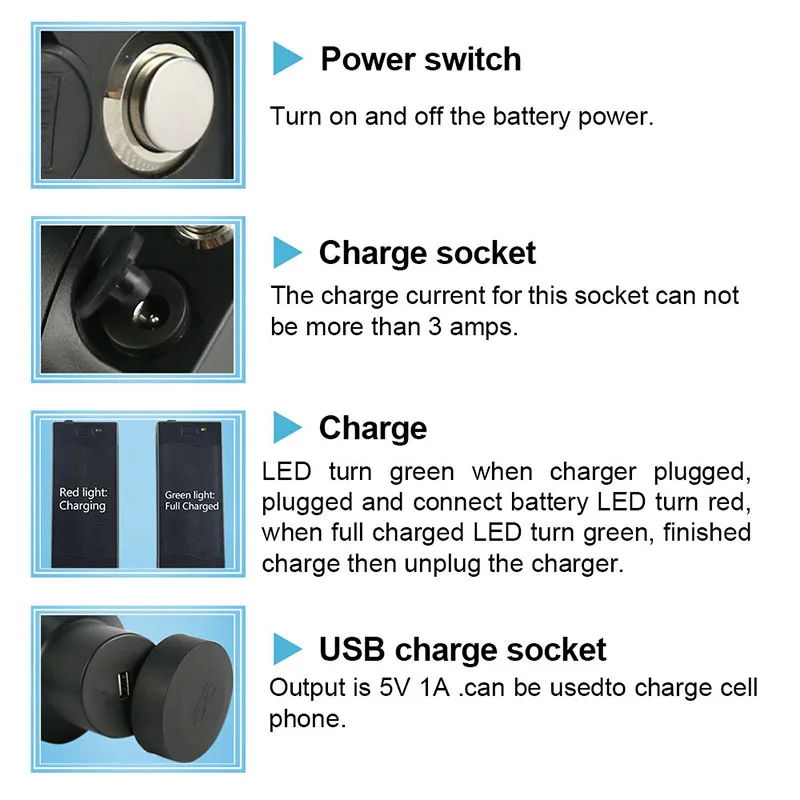

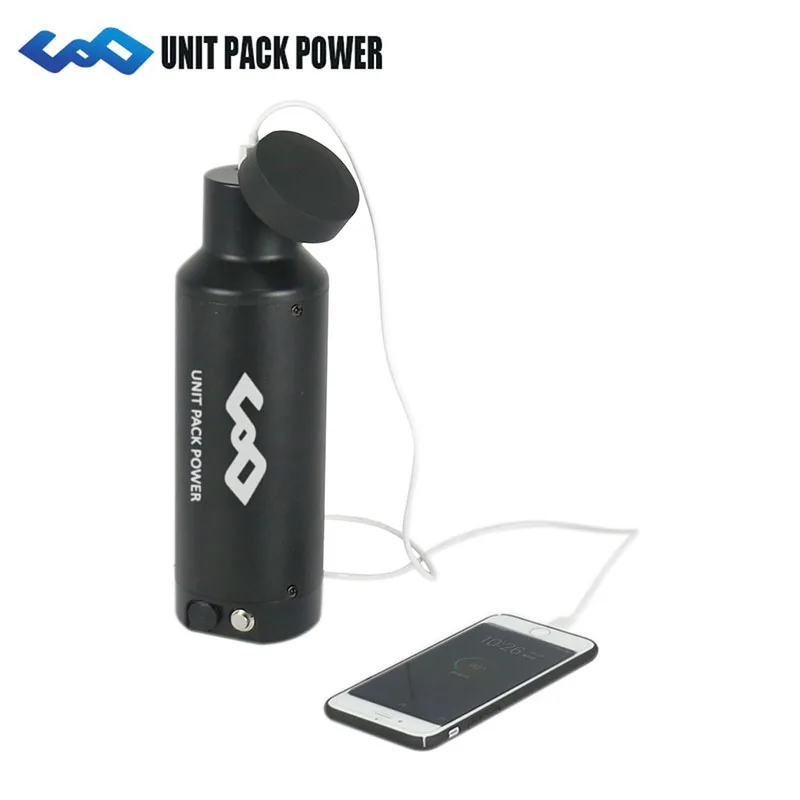

1. convenient charge port 2. on/off power button  3. USB port for charging cellphone or other device.



Unique Advantage:

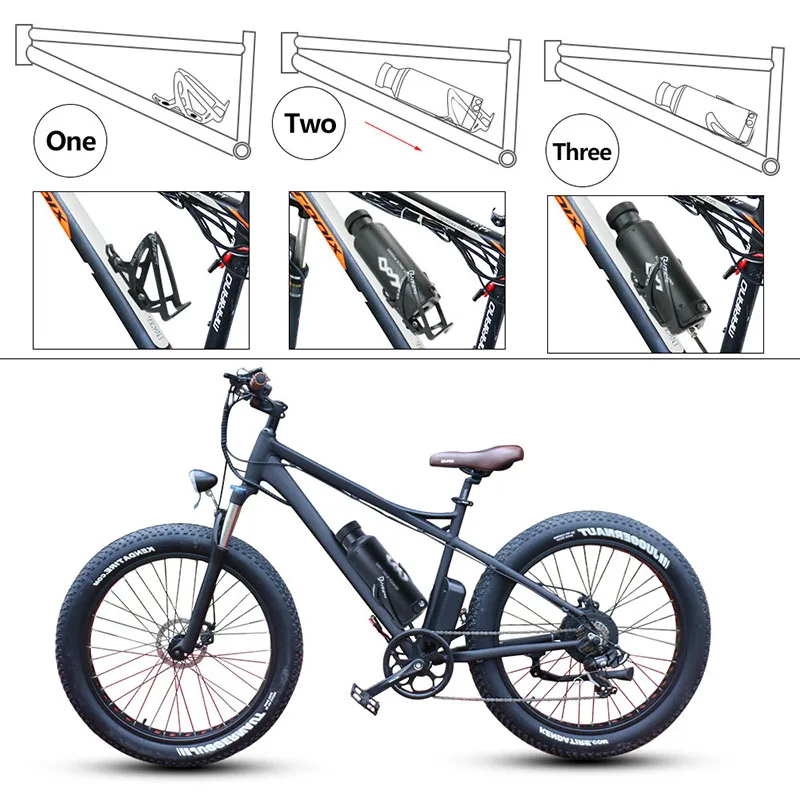

1. Small size bottle case, it's our private mold case, easy carry easy put it into the holder, just like put a cup.



Electric Bicycle Battery Specifications:



Model: S001 Mini Bottle style  Li-ion  E-bike Battery



Nominal Voltage and Rated Capacity: 36Volt 10.5Ah  Watt Hours: 378Wh



Configuration : 10Series 3Parallels   10S 3P



Cells: Sanyo18650 3.7V 3500mAh Cells



BMS:  20 Amp max continuous and 60±10Amp max peak current



Fit for Motor : 36V 200W 250W 00W 350W 450W 500W Motors



Charge Current: 2-3 A



Charge Cut-off Voltage: 42V



Discharge Cut-off Voltage: 25-30 V



Battery Dimension:  315*90*90mm (the size including holder already)



Battery Net Weight: 2.2kg

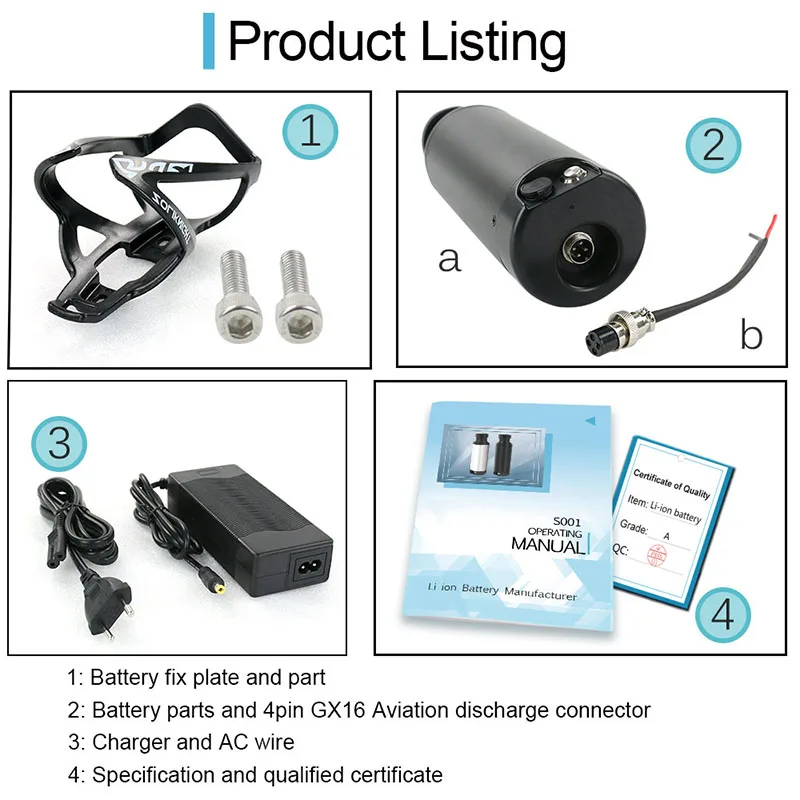

Packing List included:

1 x Lithium Battery Built-in cells and BMS

1 x Cup Holder, with 25CM discharge naked cable, or soldered default discharge connector

1 x 42V 2A Charger With AC plug



Charger plugs and Discharge connectors optional:

1.Charger Plug: US EU UK AU  plugs optional, will provide according to delivery country if without requested.



2. Discharge Connector: There are 8 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.







Ebike Battery Pictures:





Shipping Ways



Battery is a special product, all batteries need several cycle test before delivery, so production and





Guarantee



We provide 1 year warranty for all electric bike batteries.

Any battery with quality problem in o n e month we can return the money after you provide the proof.

After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.

All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.

Top brand lithium battery manufacturer in China, rest assured to buy.





We don't supply warranty service for the following situation :





The battery goes over water

The battery is broken man-made

The cells are burnt out after using .

Return the battery without reason

Open a case without contacting us





Feedback



Our battery can fit all motor kit, but exclude these four : Bosch, SHIMANO, Yamaha, Panasonic .



Please contact us, If you can't conifrm your motor.

If you have any problems please feel free to contact us BEFORE you leave negative feedback or file a case.



Any problem is not a problem, as long as you contact us.



Your satisfaction and positive feedback is very important to us.

Please kindly leave positive feedback and 5 Stars for us if you are satisfied with our items and services.



Company Information:







FAQ



Q: What type of this electric bike battery?

A: It is li ion battery,Chemical is Li(NiCoMn)O2.



Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?

A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.



Q: What's temperature range of charge and discharge?

A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C



Q: What kind of cells used on this electric bicycle battery?

A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.



Q: Do your e-bike battery come with charger?

A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.



Q: Do your electric bike batteries come with BMS?

A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.





Q: Can you provide OEM and ODM service?

A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.





Lithium battery features



Longer battery life, the life expectancy is two times that of lead-acid batteries.

Rechargeable and no memory effect.

The weight is more lighter.

Smaller dimensions and can be customized.

Safer and more environmentally friendly, No heavy metals and hazardous substances.

BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,

over-heat, short circuit .





Warnings



Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.

Does not use or leave the battery near a heat source as fire or heater.

Use the battery charger specifically for that purpose when recharging.

Do not reverse the position and negative terminals.

Do not connect the battery electrodes to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
